Professional under vehicle inspection device mirror MCD-V7D

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China Shenzhen Guangdong
Productivity:	2000 pcs
Supply Ability:	2000 pcs/month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE/ISO
Transportation:	Ocean,Air

Product Description

Waterproof Camera

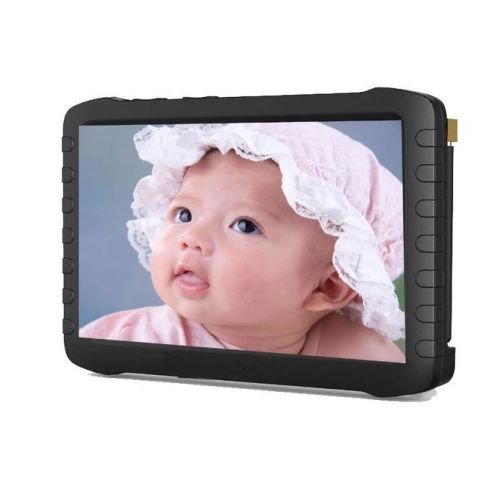

2.4G/5.8G Wireless Mini DVR ( HD 5-inch LCD screen)

Basic Information:

Wireless Receiving : Built-in 2.4G/5.8G wireless receiving module
Channel Switch Supports manual & automatic switch between 8 channels
Antenna: Folding hidden external antenna assures excellent wireless receiving.
Recording: Supports seamless cycle and continuous video from wired/wireless cameras
Photo :Supports function of taking pictures either from wired or wireless cameras.
AV IN:TV-IN [NTSC / PAL]
AV OUT:[NTSC / PAL].
Battery: Built-in 3200mAh high capacity Li-battery, which continuous record over 10 hours
Speaker: Built-in speaker of 1W
Storage: Supports up to 32GB TF card
Language: Supports multi-language
Supports Power-saving Mode: automatic shutdown, automatic off-screen
Automatic upgrade: Supports system automatic upgrade

Specification:

Items			Value
Wireless Receiving	Wireless freq. 1of 6 groups	2.4GHz–8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
		Within 5.8G-A 8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
		Beyond 5.8G-B 8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
		Within 5.8G-C 8 channels	CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
		Within 5.8G-D 7channels for FPV	CH1: 5740MHz; CH2: 5760MHz; CH3: 5780MHz; CH4: 5800MHz. CH5: 5820MHz; CH6: 5840MHz; CH7: 5860MHz; CH8: SPI
		Beyond 5.8G-E 7 channels for FPV	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: SPI
	Sensitivity		-92dB
AV IN	TV system		NTSC / PAL
	Output voltage		3.6-4.2 V
AV OUT	TV system		NTSC / PAL
HD 5-inch LCD screen	Active area		108mm(W) X 64.8mm(H)
	Resolution		800 X 480 Pixel
	Luminance for LCM		200 cd/㎡
Video	Resolution		720576 / 720480
	Video compress		MPEG-AVI 30fps
	Play format		MPEG-AV

Items		Value
Audio	Subcarrier frequency	2.4GHz:6.0MHz; 5.8G-A/B/C:6.5MHz; 5.8G-D/E:6.0/6.5MHz
	Earphone Frequency Range	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB(optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current(receiving mode)	660MA
	Current( recording mode)	680MA
	Current(recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200Mah
Standby time	Wireless record	≥9.5 hours(off-screen); ≥5hours(on-screen)
Standby time	Wired record	≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g

Feature and Application:

It is our latest developed HD video searching system , with state-of-art innovation technology.

It helps security personal to check clearly on front Video displaying the spaces where is narrow,

dark which cannot be reached by naked eyes, it will simplify troublesome inspection work and

save plenty of valuable time, improving security check efficiency. The product uses high capacity

Lithium battery for power supply which lasts 8 hours, avoiding frequent battery replacement.

The standard aluminumalloy carry case is solid enough to prevent equipment from damage by drop,

shock or press.
