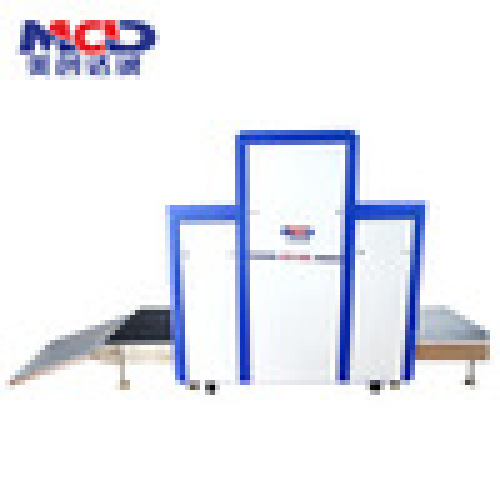

X Ray Scanner Used in the Subway Station

The selection of the security inspection machine can be judged according to the penetrating power. For example, the school, the court, the KTV and other places can choose the security inspection machine with a penetration force of 30-34mm, and the logistics company needs to select the security inspection machine with a penetration force of 40mm or more.The size can be judged by different objects, and the resolution and resolution are also different. There is also a gap in prices, the price of penetrating power is relatively high, and the price of penetrating power is relatively low.

Image processing system

1. X-ray sensor: L-shaped photodiode array detector, 16bit accuracy

2. Multi-energy color: organic matter is displayed in orange, inorganic substance is displayed in blue, mixture is displayed  in green, and unclear area is displayed in black.

3. High energy / low energy: two energy switching display

4. Hazardous materials assisted detection: assisting in the detection of dangerous goods such as some typical drug explosives

5. Independent console: easy to read, can be separated from the host by a maximum distance of 2.5m, 19-inch high-resolution display

6. Magnifying glass local zoom function, edge enhancement object contour edge is more clear, easy to penetrate, full screen imaging graphics without distortion

7. Adopt network port transmission technology to improve information transmission speed

Place of Origin:Guangdong, China (Mainland)
Brand Name:MCD
Model Number:MCD-6550
Tunnel Size::650(W)*500(H)mm
Conveyor Speed:0.22m/s
Conveyor Max Load:170kg
Penetration:34mm Steel
Film Safety:Guarantee ISO1600 Film
Generate angle:80 degree
Power Consumption:1.0 KW (max), 0.7KW(working)
Operation Power:220VAC(±10%)50±3Hz
Noise:<58db

Image display

Qualification certificate

Our Company

The company has passed ISO9001:2008 international quality system certification, CE, RoHS and other international certifications. The products have passed the National Security and Alarm System Testing Center and the Ministry of Public Security Safety and Electronic Product Quality Testing Center. Some of the company's products have applied for national patents. And obtained the import and export license of the People's Republic of China, is the best partner for domestic and foreign buyers and foreign trade companies.

Generally, we have stocks. In stock, we can ship the goods after confirming the order on the same day. If the order quantity is too large, please consult the online business manager to determine the delivery time.
