Basic Info

Product Description

X-ray baggage scanner

X-ray penetration inspection reveals the metal structure inside the object and can show places that are invisible to the naked eye. Applicable to factory inspection products and public security inspections of institutions such as electronics factories, shoe factories, toy factories, courts, stations, and security bags.

Walk through metal detector

Fireproof,waterproof ,and shockproof. It can exactly detect the location of metals that walk through person takes. Especially designed for factory ,Exhibition Areas for outdoor check,such as hardware and Electronic manufacturer check if the person steal the metals, or apply for large public events, check the person if take leather weapons.

Hand held metal detector

Hand held Metal Detector designed to

safeguard securitysensitive areaslike schools,

courtrooms, corrections facilities, sports

events, businesses,night clubs, bars and other

public areas and events.

General Specification
Tunnel size	500 (W) * 300 (H) mm
Rated power	300W
Rated load	100kg (evenly distributed)
Conveyor height	70CM
Transmission mode	motor plus track belt
Conveyor thickness	2.0mm
Transport speed	standard 0.22M/S, adjustable speed
Radiation direction	bottom illumination
Penetration	14mm thick
Penetration resolution	32AWGΦ0.202mm
Line resolution	resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
Tube voltage / tube current	80KV/0.6mA
Leakage rate	<1.0μGy/h from the outer surface of the casing at 5CM
Single dose	radiation dose <1.5uGy
Net weight	160Kg
Product volume	15075115CM
Ray beam divergence angle	80 degrees
Equipment noise level	<55db
Pass rate	720 / h ~ 1500 / h
Leakage current	<0.5mA
Cooling	Sealed circulating oil cooled, 100
Work cycle	full cycle, need to be cooled
Rated voltage	AC 220V 50HZ (±10%)
Film Safety	ISO1600 Film Safety
Working temperature / humidity	-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
Storage temperature / humidity	-20 ° C ~ 60 ° C / 20% -95% (non-condensing)

Image processing system
1.X-ray Sensor: L-shaped photodiode array (monoenergetic), 12bit deep 2.Monitor:High resolution color, LCD accord, 19inch 3.Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. 4.Image Grey Level: 4096 5.Image Max Resolution: 1024*1280 pixel. 6.Image Processing: 24bit for processing real time. 7.Image Storage: Storage 200000 pictures in real time. 8.Zones& Zoom: 1-9 image regions, 2, 4, 8, 16 times enlarge, whole screen continuous observation.

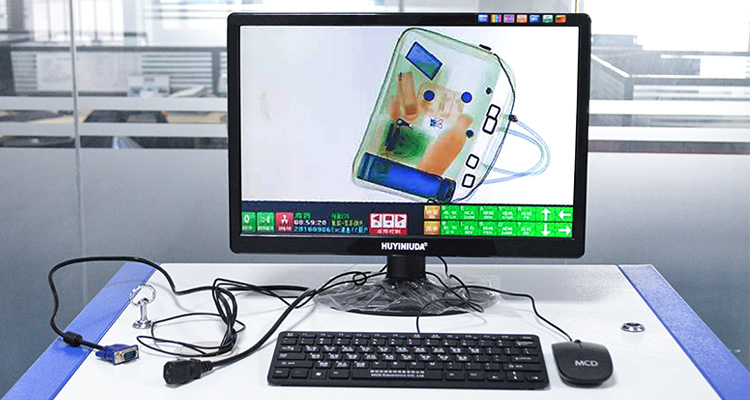

Image display

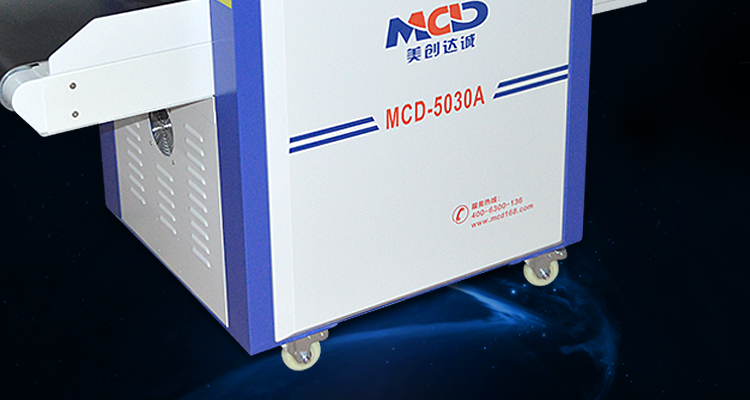

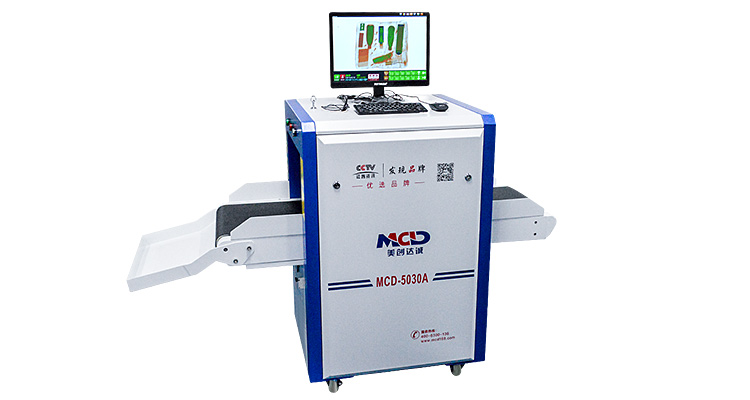

Product detail presentation

Clear image

Metal, liquid, bag, etc. when passing the security check

Clear distinction

Network interface, can connect to LAN, multiple terminals check baggage at the same time

X-ray lamp safety, automatic emission control, avoiding false emission

Simple and convenient to operate, with pulleys, easy to check the security machine at any time, no space

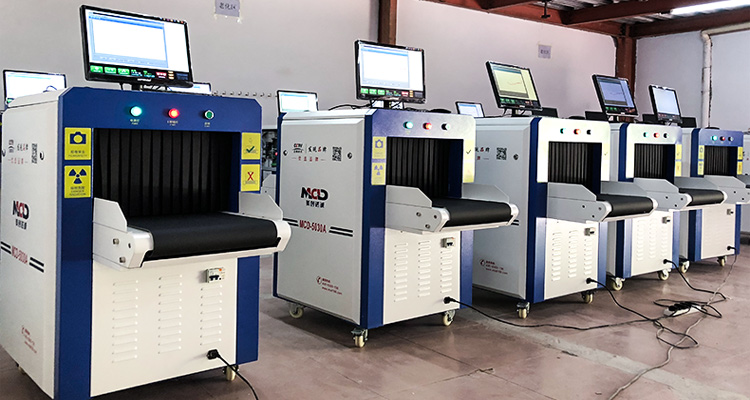

Workshop scene real shot

Kuwait Exhibition, Canada

Shenzhen Mei Chuang Dacheng Security Inspection Equipment Co., Ltd., a well-known security inspection brand in China, a support enterprise of the Guangdong Provincial Government, and an independent innovation enterprise in Shenzhen. Currently, there are more than 30 branch divisions and distributors in the country, which is focused on the development and production of security inspection equipment. And sales as one of the leading enterprises.

Public security inspection case real shot

Shenzhen Meichuang Dacheng Security Inspection Equipment Co., Ltd. mainly produces: channel X-ray machine, security door, hand-held metal detector, vehicle inspection mirror, food metal detector, underground metal detector, liquid safety detector, explosives (drugs ) Detector, anti-cheat series in the examination room, etc. Meichuangcheng security inspection equipment is widely used in: central government, national scientific research institutions, airports, courts, procuratorates, prisons, detention centers, public security, military units, school examination rooms, large-scale events, sports exhibition halls, roads and railways, station terminals, customs ports, Security inspections in public places such as embassies, tourist attractions, and entertainment venues.

Delivery time

Generally, we have stocks. In stock, we can ship the goods after confirming the order on the same day. If the order quantity is too large, please consult the online business manager to determine the delivery time.
