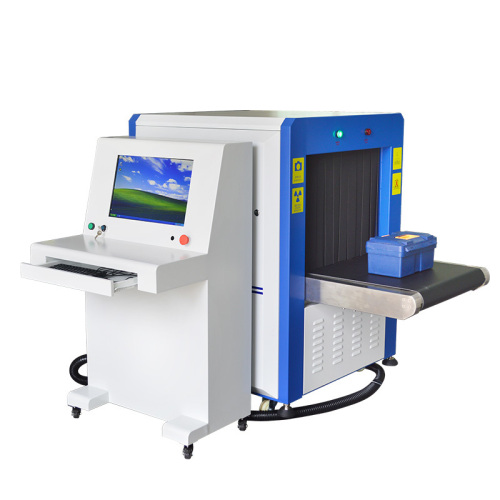

Embassy X Ray Baggage Scanner

Embassy X Ray Baggage Scanner

Specification:

X-ray Generator:

• Generate direct: Upward
• Generate anger: 80 degree
• Anode Voltage: 100~160Kv
• Anode power: 0.4 to 1.2mA
• Cooling / Duty Cycle: Oil Cooling /100%

Image System:

• X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
• Monitor: High Resolution Color, LCD Accord, 17 inch
• Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
• Image Grey Level: 4096
• Image Max Resolution: 1024 * 1280 pixel
• Image Processing: 24bit for processing real time
• Image storage: Storage 60000 pictures in real time
• Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
• Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
• High-energy/low energy : switch from high energy to low energy
• Assist to detect drug and explosive powder

Installation Data:

• Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
• Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)
• Operation Power: 220VAC(±10%)50±3Hz
• Power Consumption: 1.0 KW (max), 0.7KW(working)
• Noise: <58db

Features:

• Sound and light alarms
• Network Interface: Can connect local area networks, multiple terminals can check luggage`s at the same time.
• Safer-ray: Ray fired automatic control, to avoid misusing launching.
• Simple mouse control: can directly control the equipment without the keyboard and the working table.
• One shutdown control button: You just need to rotate the key and the equipment will automatic power off safely, no need for complex multi-step operation, more convenient and simpler.
• Eagle Eye: Current region can be reviewed conviently in enlarged status.
• Fault self-diagnosis: Automatically determine the failure and give prompt information, easy to maintain.

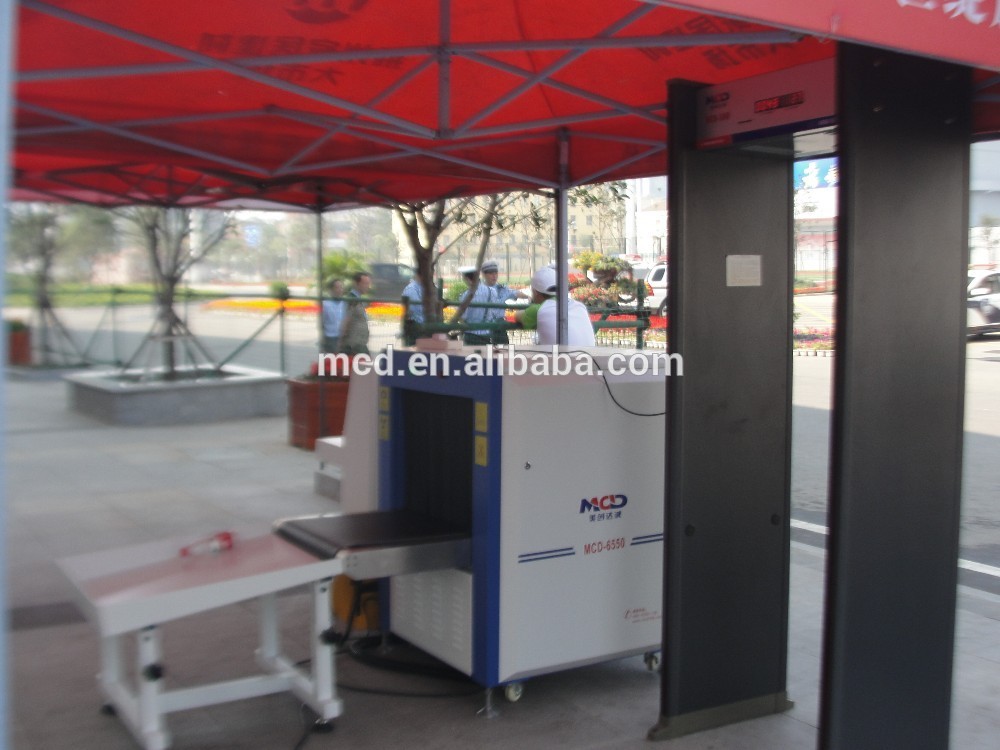

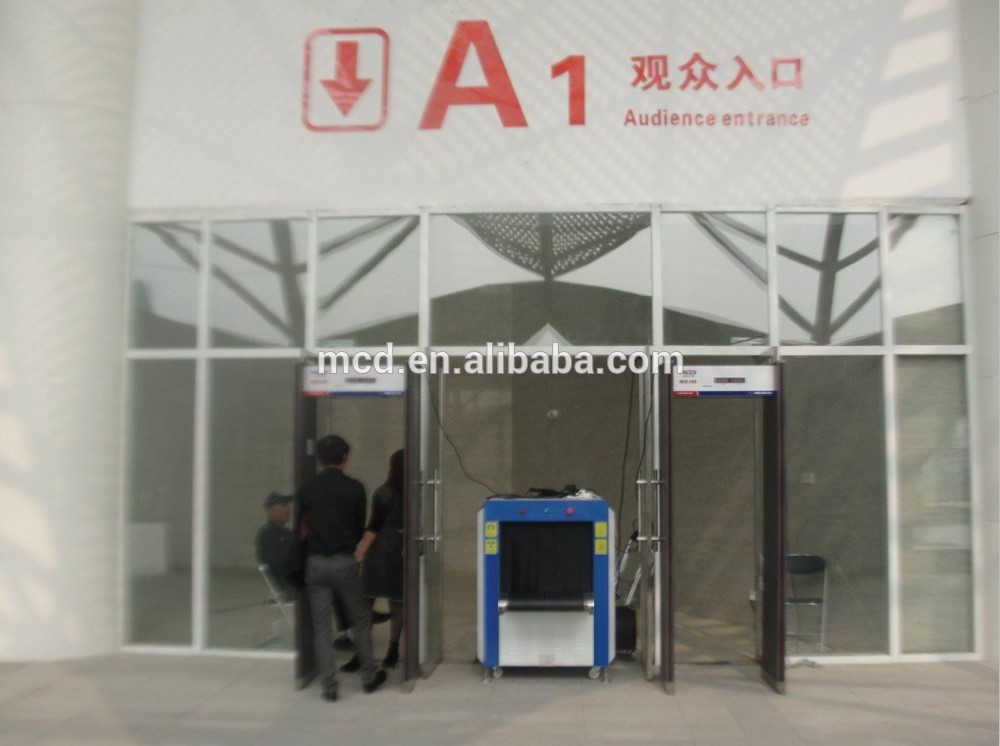

It is widelu used in the factory testing of security products and business units such as: electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package.
