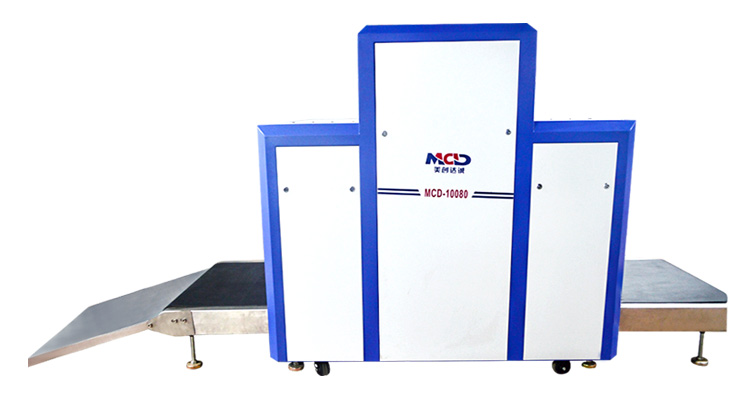

10080A X-Ray Baggage Scanner Machine for Airport

10080A X-Ray Baggage Scanner Machine for Airport

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

X-ray baggage scanner

X-ray penetration inspection reveals the metal structure inside the object and can show places that are invisible to the naked eye. Applicable to factory inspection products and public security inspections of institutions such as electronics factories, shoe factories, toy factories, courts, stations, and security bags.

Walk through metal detector

Fireproof,waterproof ,and shockproof. It can exactly detect the location of metals that walk through person takes. Especially designed for factory ,Exhibition Areas for outdoor check,such as hardware and Electronic manufacturer check if the person steal the metals, or apply for large public events, check the person if take leather weapons.

Hand held metal detector

Hand held Metal Detector designed to

safeguard securitysensitive areaslike schools,

courtrooms, corrections facilities, sports

events, businesses,night clubs, bars and other

public areas and events.

General Specification
Tunnel size	1000 (W) * 800 (H) mm
Rated power	500W
Rated load	250kg (evenly distributed)
Conveyor height	30cm
Transmission mode	Electric drum
Conveyor thickness	3.0mm
Transport speed	standard 0.22M/S, adjustable speed
Radiation direction	Top-illuminated
Penetration	38mm thick
Penetration resolution	34AWGΦ0.160mm
Line resolution	resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
Tube voltage / tube current	140KV/0.5mA
Leakage rate	<1.0μGy/h from the outer surface of the casing at 5CM
Single dose	radiation dose <1.5uGy
Net weight	550Kg
Product volume	320131172（cm）
Ray beam divergence angle	80 degrees
Equipment noise level	<55db
Pass rate	720 / h ~ 1500 / h
Leakage current	<0.5mA
Cooling	Sealed circulating oil cooled, 100
Work cycle	full cycle, need to be cooled
Rated voltage	AC 220V 50HZ (±10%)
Film Safety	ISO1600 Film Safety
Working temperature / humidity	-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
Storage temperature / humidity	-20 ° C ~ 60 ° C / 20% -95% (non-condensing)

Image processing system

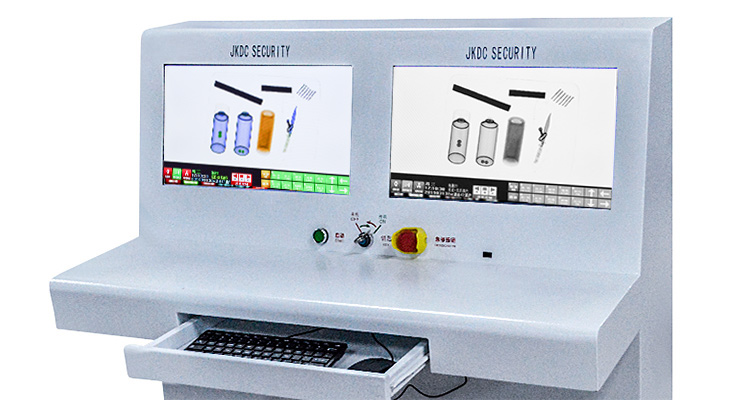

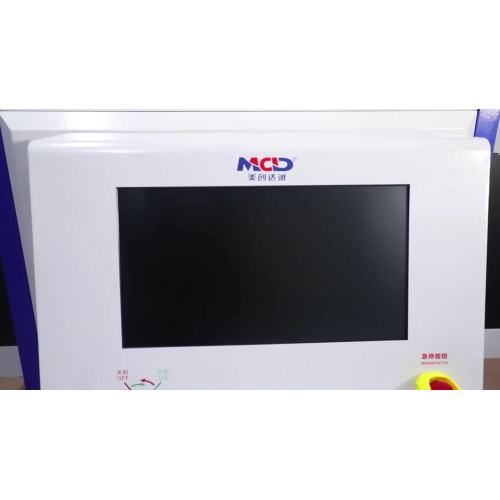

1. X-ray sensor: L-shaped photodiode array detector, 16bit accuracy 2. Multi-energy color: organic matter is displayed in orange, inorganic substance is displayed in blue, mixture is displayed in green, and unclear area is displayed in black. 3. High energy / low energy: two energy switching display 4. Hazardous materials assisted detection: assisting in the detection of dangerous goods such as some typical drug explosives 5. Independent console: easy to read, can be separated from the host by a maximum distance of 2.5m, 19-inch high- resolution display 6. Magnifying glass local zoom function, edge enhancement object contour edge is more clear, easy to penetrate, full screen imaging graphics without distortion 7. Adopt network port transmission technology to improve information transmission speed

Image display

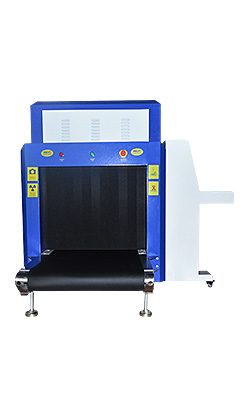

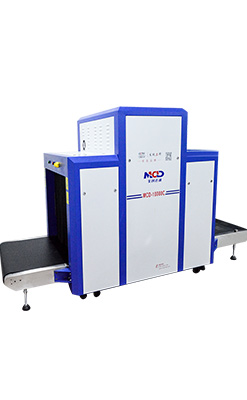

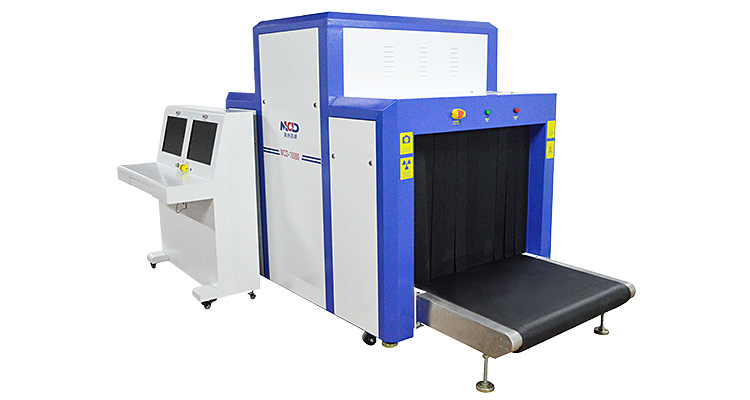

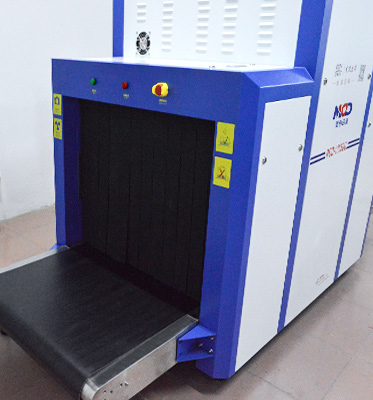

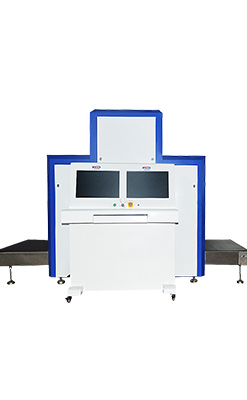

Product detail presentation

Clear image

Metal, liquid, bag, etc. when passing the security check

Clear distinction

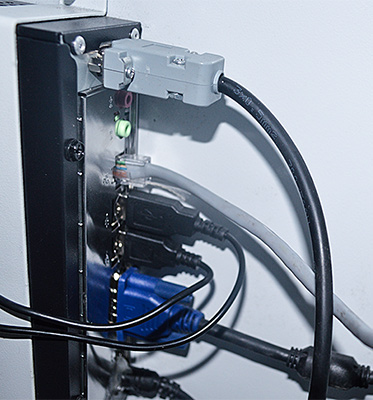

Network interface, can connect to LAN, multiple terminals check baggage at the same time

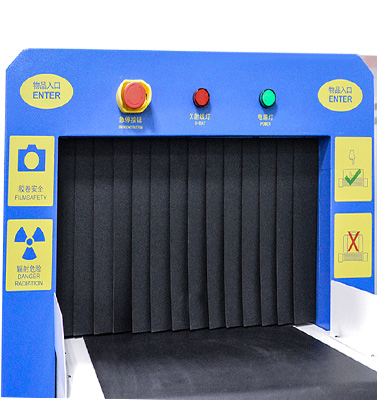

X-ray lamp safety, automatic emission control, avoiding false emission

Simple and convenient to operate, with pulleys, easy to check the security machine at any time, no space

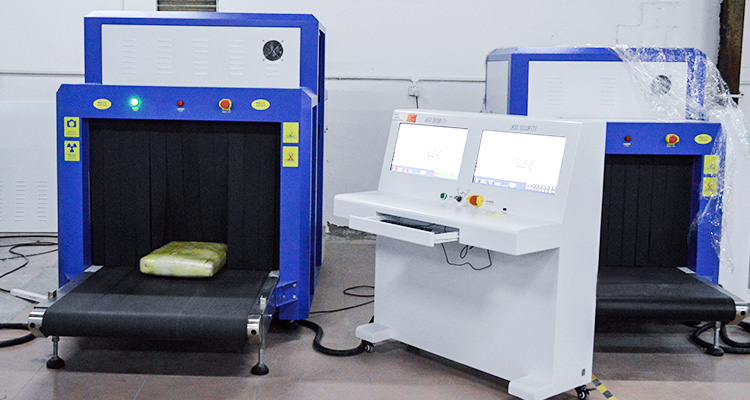

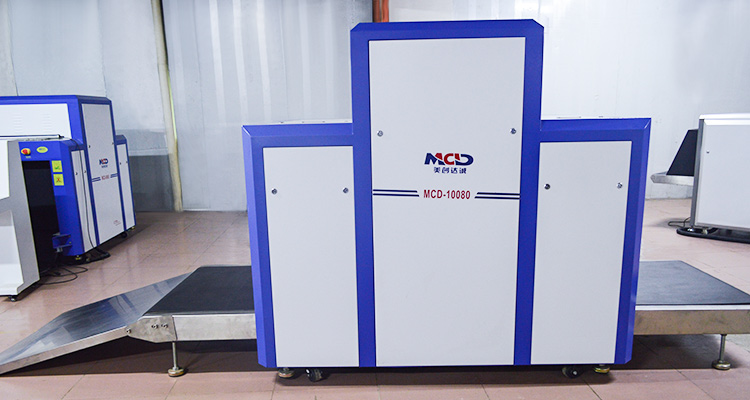

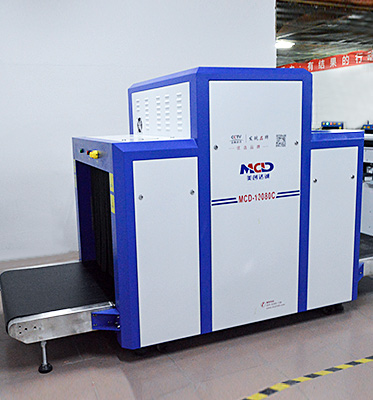

Workshop scene real shot

Qualification certificate

Exhibition and case show

Kuwait Exhibition, Canada

Shenzhen Mei Chuang Dacheng Security Inspection Equipment Co., Ltd., a well-known security inspection brand in China, a support enterprise of the Guangdong Provincial Government, and an independent innovation enterprise in Shenzhen. Currently, there are more than 30 branch divisions and distributors in the country, which is focused on the development and production of security inspection equipment. And sales as one of the leading enterprises.

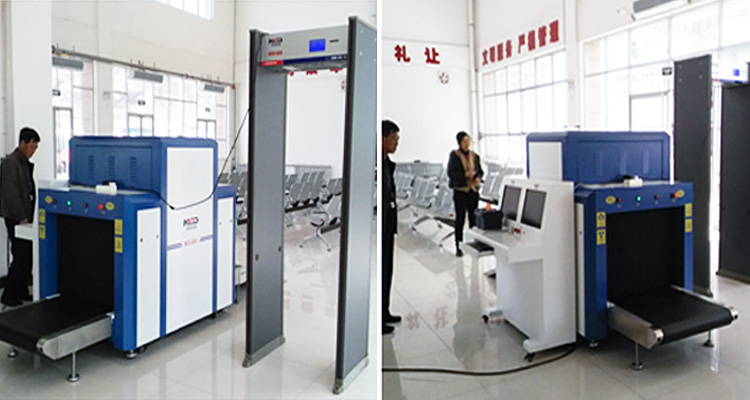

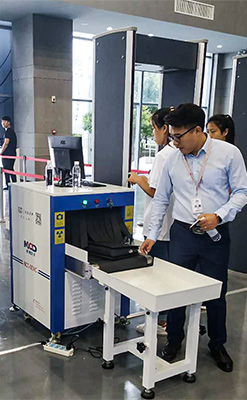

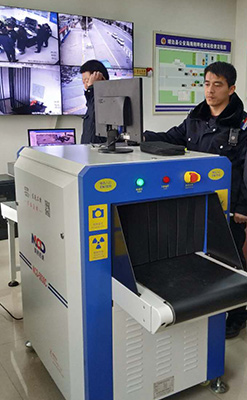

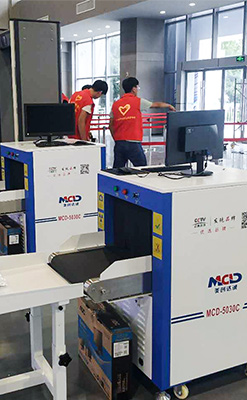

Public security inspection case real shot

Shenzhen Meichuang Dacheng Security Inspection Equipment Co., Ltd. mainly produces: channel X-ray machine, security door, hand-held metal detector, vehicle inspection mirror, food metal detector, underground metal detector, liquid safety detector, explosives (drugs ) Detector, anti-cheat series in the examination room, etc. Meichuangcheng security inspection equipment is widely used in: central government, national scientific research institutions, airports, courts, procuratorates, prisons, detention centers, public security, military units, school examination rooms, large-scale events, sports exhibition halls, roads and railways, station terminals, customs ports, Security inspections in public places such as embassies, tourist attractions, and entertainment venues.

Our Company

The company has passed ISO9001:2008 international quality system certification, CE, RoHS and other international certifications. The products have passed the National Security and Alarm System Testing Center and the Ministry of Public Security Safety and Electronic Product Quality Testing Center. Some of the company's products have applied for national patents. And obtained the import and export license of the People's Republic of China, is the best partner for domestic and foreign buyers and foreign trade companies.

workshop corner

Office corner

a corner of the finished product aging zone

Packing & Delivery

All X-ray baggage scanners are packaged in standard export plywood cartons. It can be transported by air, sea, land or express (eg DHL, UPS).

Delivery time

Generally, we have stocks. In stock, we can ship the goods after confirming the order on the same day. If the order quantity is too large, please consult the online business manager to determine the delivery time.
