auto paint and equipment

Our company can provide customers with a full range of programs for different products, different structures, different production requirements to help customers solve, at the same time can help customers solve the spray paint is the production needs. Plastic material, glass material, metal material and so on.

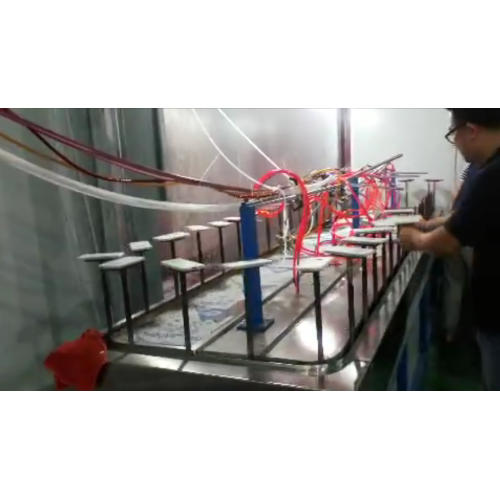

Small automatic painting machine for a variety of products spray structure. For example: spraying round sofa feet, automatic spraying square glass bottles, cell phone covers, semi-automatic painting machine with clockwise and counterclockwise rotation function to ensure that the product surface spray 100% uniform, there is no orange peel phenomenon. The use of small automatic spray requires less labor, each machine only needs 2-3 people. One person on the piece, the next one, paint master one. Mini automatic spray machine spray function and large automatic spray line, line speed can be adjusted to 1-8m / min. Small auto paint machine covers an area of small, low labor intensity.

Our small automatic paint spray machine with advantages of

safe

easy to ues

good mobility

fully automated

low-noise

automation production process

durable

low consumption

Machine size:

W950*L2200*H1000(mm)

W950*L2500*H1000(mm)

W950*L3000*H1000(mm)

W950*L4000*H1000(mm)

W950*L4500*H1000(mm)

W950*L5000*H1000(mm)

Process: loading----dust free----auto paint spraying--unloading

Production capabilities: 800-3500 pcs/hour

Max product size:300*300*250(mm)

diagonal max: 420mm

Spray guns quantities:6-8 pcs

Advantage: front and back turnning, 360 degree adjustable, quality products, movable, structure designed no dust store and easy to clean, chainlink speed:3-12m/min

Suitable filed : mobile case/mouse/wine package cap/camara/water bottle/heating bottle/radio/earphone/helmet/crafts(plastic,metal) parts etc.

main includes: main structure, front turnning system,spray gun control system

water curtain booth match :2.4m above.
