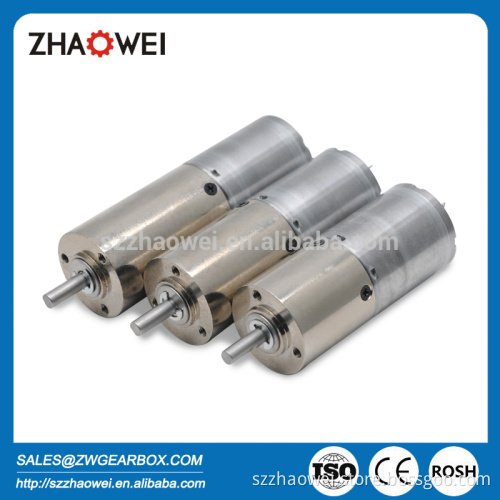

12V Low Rpm DC Gear Motor With Transmission Gearboxes

12V Low Rpm DC Gear Motor With Transmission Gearboxes Product Description

diameter	24mm
motor	DC Gear transmission Motor
noise level	less than 40dB at the 50cm distance
life time	200 hours
working temperature	-40 to 95ºC
tolerance	<0.3mm
Certification	ROHS/ISO9001/ISO14001/SGS/TS16949
Suitable for	Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.
OSD Language	English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean
The basic specifications for reference only, specifications can be customized.

  Features high appearance working temperature: to 200ºC high precision Reliability Test   * Noise Test * Water-proof Test * Life Test * Impact Test * Storage Test * Salt Spray Test * Environmental Related Substance.
  1)Specification

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWBMD024024-16	12.0	365	75	315	215	248	24.4	55.8	20000	60000	16	25.0
ZWBMD024024-24	12.0	243	75	210	215	373	36.5		20000	60000	24
ZWBMD024024-36	12.0	162	75	140	215	559	54.8		20000	60000	36
ZWBMD024024-64	12.0	91	75	79	220	835	81.8	62.8	20000	60000	64	32.0
ZWBMD024024-96	12.0	61	75	52	220	1144	112.2		20000	60000	96
ZWBMD024024-144	12.0	41	75	35	220	1878	184.1		20000	60000	144
ZWBMD024024-216	12.0	27	75	23	220	2817	276.2		20000	60000	216

above specifications just for reference and customizable according to requirements.     2)2D Drawing 3)Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine, Car tail gate electric putter
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments

  Product details show Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.   2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation. Our Services ODM & OEM Gearbox design and development Related technology support Company Information Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages 18-year experience in manufacturing motor gearbox Experienced Staff: average 7-year experience in R&D , ODM &OEM International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949 Competitive Price High Product Performance: Low noise, High efficiency, Long lifespan Prompt Delivery: 15 working days after payment Small Orders Accepted Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.  2) Main Products   Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm; Customized worm and gear transmission machinery; Precise electromechanical motion module; Precise component and assembly of plastic and metal powder injection. Production&Equipment Certifications We Have passed to hold ISO9001, ISO14001 and TS16949. and more... FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry .
