ZENS005 Vaccum Atomatic Solder Cream Mixer Machine Low Price

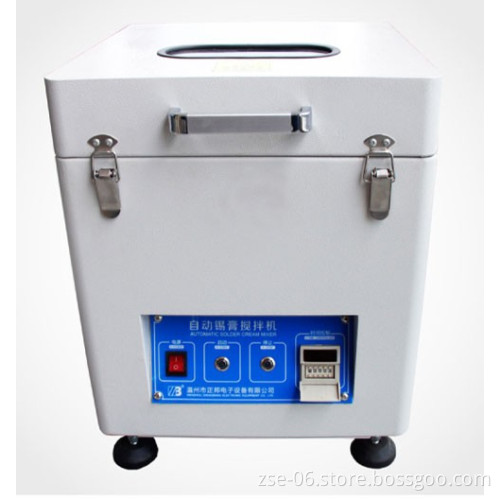

ZENS007 High Speed Low Noise Solder Paste Mixer Machine Wholesale Price Product Description   I. Introduction ZENS005 Mixer The revolution of the centrifugal force generated by automatic paste mixer,the force produced by the rotation of the rotating shaft and the angle of 45 degrees,The tank is located in the upper end of the paste continuous downward movement,Located at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste has good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of reflow soldering when.Its characteristics are as follows:   A. Mixing does not require prior paste retreat of ice. B. Special control circuit, mixing time and speed can be adjusted, easy to operate. C. Paste 45 degrees rotation, along the axis direction, not attached to the tank cover paste. D. Smooth running, low noise, with the natural temperature in the mixing process, the effect of removing bubbles. E. Paste pot without opening the lid, convenient, safe, suitable for various packing paste pot clamp. F. Without water, does not destroy the shape of tin. G. Power single 220V, with a safety device, to ensure personal safety. II. Technical parameters

Type	ZENS005
Operating speed	Motor speed: 1350RPM
	One revolution: 400RPM; Two rotations: 300RPM
Operational capability	0-1000 g * 2 tanks
Acceptance of  solder cream pot	Tank diameter Φ60-Φ67 standard configuration (suitablefor general 500 g solder cream bottle) Other specifications, please contact us for customization.
Time setting	0.01s~99H99s, minute and second set
Display mode	LED digital display
Rated power	Constant speed   40W
Working power supply	AC  220V±10% 60Hz
Boundary dimension	410*410*480mm
Weight	About 45kg

  III. Matters need attention It is strictly prohibited to work the operation in the case of opening the cover or the cover of the machine.,Production run after the machine to open the cover, must wait for the machine to completely stop and then open. There will be some shaking when the machine is moving.,So the machine must be placed in a stable and solid place.,If the machine runs once excessive abnormal intense vibration,Immediately turn off the power,After the machine stop running,then Open cover check, be excluded. Company Information    Our Services   1. Quick response within 24 hours; 2. Offer free spare parts and service within one year of warranty, but all the other relative cost should be on the buyer's account; 3. Technology Support :Provide Demo operation video for training; If you have time,welcome to our company,we will arrange engineers to show you the operation; 4. Good and professional after-sales service.
Packaging & Shipping    Packing method: 1) Standard  box package for light and small item; 2) Strong wood package for heavy and large equipment; Shipping way: 1) By air, for sample and small package, worldwide express like DHL, UPS, Fedex, EMS 2) By sea, for large package and quantity; 3) By car or other ways as customer requested.     Contact us
