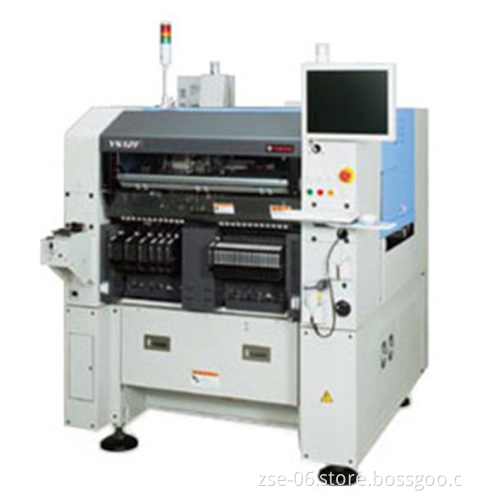

Compact Economic Flexible Modular YS12F automatic pick and place machine for SMT assambly

Compact Economic Flexible Modular YS12F automatic pick and place machine for SMT assambly     Product Description

Model	YS12F (Model : KKJ-000)
Applicable PCB	L510mm x W460mm to L50mm x W50mm
Mounting accuracy	Absolute accuracy(μ+3σ) +/-0.05mm/CHIP
Mounting tact	20,000CPH(under our optimum condition)
Component supply	Tape reel, tray
Number of component types	Tape package components: 106 types(Max/8mm tape reel conversion)Tray package conversion: 15 types(Max/JEDEC tray conversion)
Applicable components	0402 to 45x100mm, including ball type electrode components *32x32mm or more needs special nozzle set
Applicable height	15mm
Power supply	3-Phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source	0.45MPa
External dimension	L1,254 x W1,755 x H1,475mm (when ATS15 mounted; not include the projection)
Weight	Approx. 1,370kg (when ATS15 mounted)
