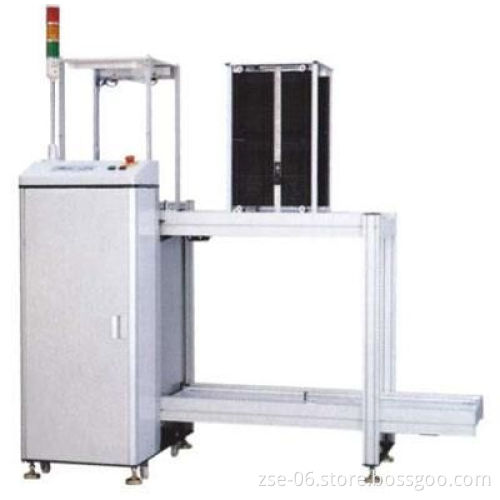

Automatic PCB magazine loader for SMT Electronic Assembling system

Product Overviews Automatic SMT magazine PCB handling loader for pcb macking from Shenzhen manufacture  Product Description   1. Overall dimensions: L11000 * W780 * H1200 ± 30mm 2. Special aluminum profile rails and dedicated 1000 bird type plastic chain 3.90W Taiwan production brake motor drive using ball screw to make Magazine step up and down 4. Transmission motor with 15W fixed speed motor 5. Pneumatic clamping structure. 6.Magazine specifications : L355 * W320 * 565mm 7.PCB maximum specification: L330 * W250mm 8. Direction: right to left / left to right 9. The lifting platform pitch selection is 10,20,30,40 10. Transmission height : H = 920 ± 30mm 11.PLC Programmable controller control 12. With automatic load board function. 13. Pneumatic components (push plate cylinder position with screw adjustment) 14. Power: 220V 50HZ 15. Air source: 0.4-0.6MPa 16. Full load plate number: 50PCS Packaging & Shipping  Packing method: 1) Standard  box package for light and small item; 2) Strong wood package for heavy and large equipment; Shipping way: 1) By air, for sample and small package, worldwide express like DHL, UPS, Fedex, EMS                            2) By sea, for large package and quantity; 3) By car or other ways as customer requested. Company Information                Besides, we are the Tatung office in China.   Our Services  1. Quick response within 24 hours; 2. Offer free spare parts and service within one year of warranty, but all the other      relative cost should be on the buyer's account; 3. Technology Support :Provide Demo operation video for training; If you have  time,welcome to our company,we will arrange engineers to show you the operation; 4. Good and professional after-sales service. FAQ  FAQ: 1) This is the first time I use this kind of machine, is it easy to operate?  There is english manual or guide video that show you how to use machine.  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.   2) If machine have any problem after I receive it, how can I do ?  Free parts send to you in machine warranty period.  If the part is less than 0.5KG, we pay the postage.  If it exceeds 0.5KG, you need to pay the postage.   3) MOQ ?  1 set machine, mixed order is also welcomed.   4) How can I buy this machine from you? ( Very easy and flexible !)  A. Consult us about this product on line or by e-mail.  B. Negotiate and confirm the final price , shipping , payment methods and other terms.  C. Send you the proforma invoice and confirm your order.  D. Make the payment according to the method put on proforma invoice.  E. We prepare for your order in terms of the proforma invoice after confirming your full payment.  And 100% quality check before shipping.  F.Send your order by air or by sea.   Contact us Keisen Li (Sales ) ************************************************************************** Shenzhen zens electronic co., Ltd.    Tel:   +86-18320899961              Fax:   +86-75523720622  Whatsapp: +86-75523720566          Company website:  https://zse.en.alibaba.com     Address:  4th Floor, Building 2, Heng changrong High-tech Industrial Park, Shangnan East Road No.128, Shajing Street, Bao'an Dist, Shenzhen Guangdong Province, China.                                  Postcode: 518125
