Led Rigid strip light SMD 5630 72leds/m Non-waterproof IP20 aluminum LED hard strip

  Product Description

5630-72LEDS/M ALUMINIUM LED BAR/LED RIGID BAR
ITEM NO.	CHIP	VOLTAGE	POWER	IP RATE	LUMEN	UNIT
JYX-5630-72-AL10-W1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	35-40LM/LED	METER
JYX-5630-72-AL10-WW1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	35-40LM/LED	METER
JYX-5630-72-AL10-B1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5630-72-AL10-R1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5630-72-AL10-G1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5630-72-AL10-Y1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5630-72-AL10-W1	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	9-10LM/LED	METER
JYX-5630-72-AL10-WW2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	9-10LM/LED	METER
JYX-5630-72-AL10-B2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5630-72-AL10-R2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5630-72-AL10-G2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5630-72-AL10-Y2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER
5730-72LEDS/M ALUMINIUM LED BAR/LED RIGID BAR
ITEM NO.	CHIP	VOLTAGE	POWER	IP RATE	LUMEN	UNIT
JYX-5730-72-AL10-W1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	35-40LM/LED	METER
JYX-5730-72-AL10-WW1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	35-40LM/LED	METER
JYX-5730-72-AL10-B1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5730-72-AL10-R1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5730-72-AL10-G1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5730-72-AL10-Y1	1 CHIP	12V	36W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5730-72-AL10-W1	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	9-10LM/LED	METER
JYX-5730-72-AL10-WW2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	9-10LM/LED	METER
JYX-5730-72-AL10-B2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5730-72-AL10-R2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5730-72-AL10-G2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER
JYX-5730-72-AL10-Y2	1 CHIP	12V	14.4W/M	IP20/IP33/IP44/IP65	/	METER

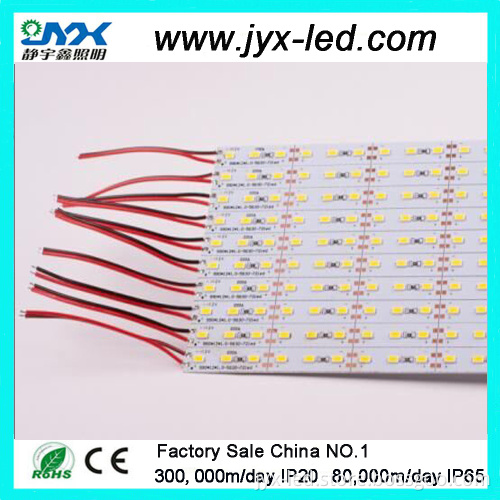

  Product Features: 1.Easy installation with mounting clip 2.Solid-state, high shock/vibration resistant 3.High brightness and low power consumption 4.Vivid lighting color 5.Defending electricity leakage 6.Aluminum housing, fast heat radiation 7.Can be designed according your requirements, especially we can design the products 8.According the varieties of the pearls and jewels to show your jewels in best way 9.Can adjust the view angle of the LED rigid bar according your counters   Specifications:  1.Model: JYX-5630-72-12v-LED BAR 2.Size:L100cm(1M)xW1.2cm  3.PCB Type:Aluminum 4.Chip Type:3chips/1chip 5.Working Voltage: 12V DC 6.LED Quantity:72 leds/m ,200m/carton 7.View angle: 120 ° ~ 140 ° 8.Working Temperature: -20 ° to 50 ° 9.Life Span:15000 hours 10.Color: W/WW/B/G/R/Y Warmly Note:difference of Chip and FPC One chip means just 1 led in it,and 3chips are 3leds in it.Usually it is not obviously,but when you light the strip on ,you can see it clearly. The strip with double layer FPC is much better than the one with single layer FPC,Usually double layer's back color is white,single is yellow.   Products Pictures:
      Application   channel letter lighting, underwater engineering store window window , bar and freezer cabinets DIY decoration lighting for festival ,party and home use advertising board lighting, backlight or edge lighting for sigage     Packaging & Shipping  Packing detail :non-waterproof  200m/CTN                             waterproof  100m/CT       Our Services Take customer are our Gods.making things convenient for customer Well-train and experience staffs will answer your requires with fluent English Your enquiries for our products will be reply within 24 hour All of our products have 1 years warranty (unless otherwise specifited) Unconditional turn back if unsatisfactory with quality Protection of ypur sales area,ideas of sign and your private information Company Information Month Capacity: 10 million meters Factory: 350 employees; 8000m² whorkshop area; 40sets SMT machines.     FAQ  1. Can I get the samples for free? --Warm welcome clients buy samples for evaluation, but you have to pay the shipping cost, since here are so many clients need samples before the order, it is a big cost. Thanks for your understanding.  2. What is color temperature?  --Warm white= 2700K-3200K  --Natural white= 4000K-4500K  --Pure white= 5000K-5500K  --Cool white= 6000K-6500K    3. Can our logo or a simple parameter printed on the label of the led flexible strip?
--Yes,it is ok.   4. Can you make the lamps using other brand led chip, e.g. CREE, OSRAM?
--Yes, it is ok for other brand chips.   5. Can the carton make in accordance with our requirement?
--Yes, it is ok.   Contact us  Sophie  E-mail:sophie@jyx-led.com  Phone:+86 15813883850 QQ:2967551301  Skype:SophieJYXlighting   Your inquiry will be replied within 24 hours.  Thank you very much for viewing this page, wish you a nice day!
