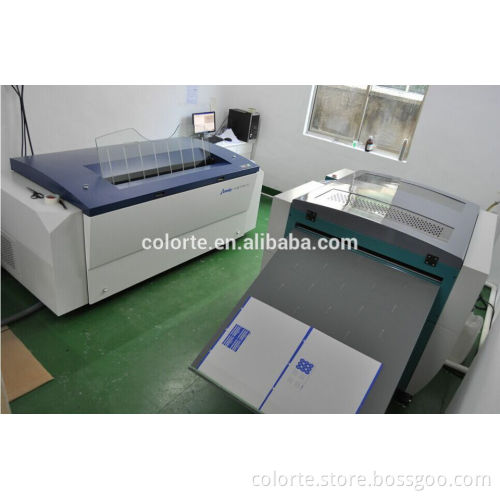

Wonder 800 series CTP machine, best quality CTP machine

Get Latest Price

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Mode	T864
Exposing Method	External Drum
Imaging System	64-channel
	Discrete 830nm laser
Output Speed	28 plates/hour
	1,030×800mm 2,400dpi
Plate Size	Max.1,130×920mm,Min. 400×300mm
Exposing Size	Max.1,130×904mm
Media Type	Thermal plate
Plate Thickness	0.15mm~0.3mm
Resolutions	2,400dpi
Repeatablity	±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )
Interface	USB2.0/USB3.0(Recommended option is USB2.0)
Plate Loading	First manual, then autoload
Net Weight	900KG
Device Size	2,530×1,050×950mm(W×D×H)
Power supply	Single phase:200V-240V; Max power(Peak value):4KW
Environment	Recommended temperature: 21-25℃ Allowable temperature: 18-26℃ Humidity: <70%

Packaging & Shipping

Our Services 1)Provide 2 years warranty for the machine. 2)Provide free replacement of accessories. 3)Provide free technical training and overseas installation.
