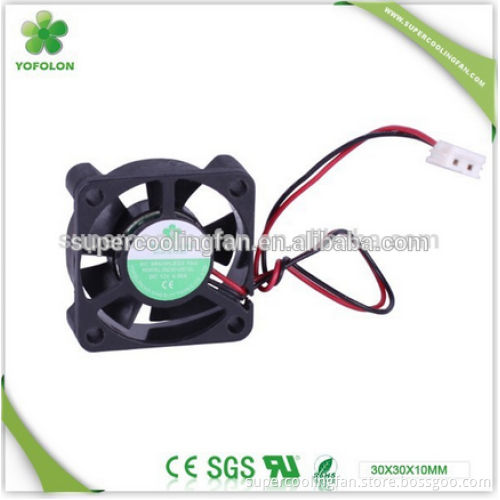

UL94 - 0 inverter adaptor 30x30x10mm 5V 12V dc cooling fan

Product Description   Size: 30X30X10mm Frame: Plastic Impeller: Plastic P. B. T. Voltage: 5V, 12V Current: 0.08-0.20A Power: 0.50-1.44W Speed: 3000-10000RPM Air flow: 2.65-4.32CFM Pressure: 2.84-3.82(mmH2O) Noise: 21.47-29.86BA Bear type: Sleeve, Two Ball  are Available Weight: 8G Motor: Brushless DC, auto restart Impedance & polarity protected Operation temperature: -20° C~80° C Insulation Resistance: 10 At 500VDC between lead and frame Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% Working voltage: Rated voltage± 15% Life at 25oC: Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs   Motor Protection (Selective purchasing): 1.Automatic Restart. 2.Reverse Polarity Protected 3.Water proof for IP25, IP55 4.IC function RD ,FG and PWM control are available   * Two ball bearing applying * Applying NMB ball bearing inported from Japan * Short lead time 1 Week after confirm order        Our product range
DC Fan:
1.Size range:25mm~120mm
2.Voltage:5V,12V,24V,48V
3.Volume range:1.2CFM~300CFM
4.Singal type:emergency stop singal,temperature control,PWM speed adjust (the most common used)   AC Fan:
1.Size range:80mm~254mm
2.Voltage:115V,200V,220V
3.Volume range:7CFM~212CFM

 DC Blowers Fan:
1.Size range:40mm~120mm
2.Voltage:12V,24V
3.Volume range:2.6CFM~38CFM
4.Singal type:emergency stop singal,temperature control,PWM speed adjust    Packaging & Shipping   Our Services       FAQ
