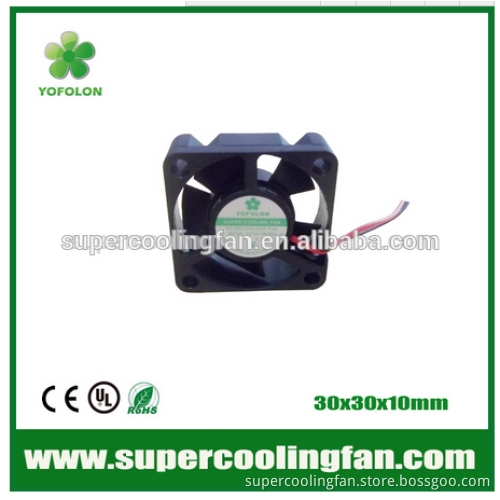

notebook cooler applied 30x30x10mm 12V dc electric mini fan

Product Description notebook cooler applied 30x30x10mm 12V dc electric mini fan   parameter:

Name	3010 notebook cooling fan
Model	DC3010B12H
Fan Dimensions	30*30*10mm
Bearing Type	ball bearing
Fan speed	10000RPM
Fan Noise level	29.86dBA
Max. Fan Air Pressure	4.45mmH2O
Rated Voltage	12V
Rated Current	0.12A
Power Connector	2/3/4Pin
Life hours	50,000 hours
Application	Printer, LED  CPU server, Home Appliance,etc
Weight	10g
Packing detail	Carton Box with Cardboard, 500pcs/Ctn, Carton Size:25x25x20cm

  Common parameter: Size: 30X30X10mm Frame: Plastic Impeller: Plastic P. B. T. Voltage: 5V, 12V Current: 0.08-0.20A Power: 0.50-1.44W Speed: 3000-10000RPM Air flow: 2.65-4.32CFM Pressure: 2.84-3.82(mmH2O) Noise: 21.47-29.86BA Bear type: Sleeve, Two Ball  are Available Weight: 8G Motor: Brushless DC, auto restart Impedance & polarity protected Operation temperature: -20° C~80° C Insulation Resistance: 10 At 500VDC between lead and frame Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% Working voltage: Rated voltage± 15% Life at 25oC: Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs       Motor Protection (Selective purchasing): 1.Automatic Restart. 2.Reverse Polarity Protected 3.Water proof for IP25, IP55 4.IC function RD ,FG and PWM control are available   * Two ball bearing applying * Applying NMB ball bearing inported from Japan * Short lead time 1 Week after confirm order Packaging & Shipping     FAQ     Company Information
