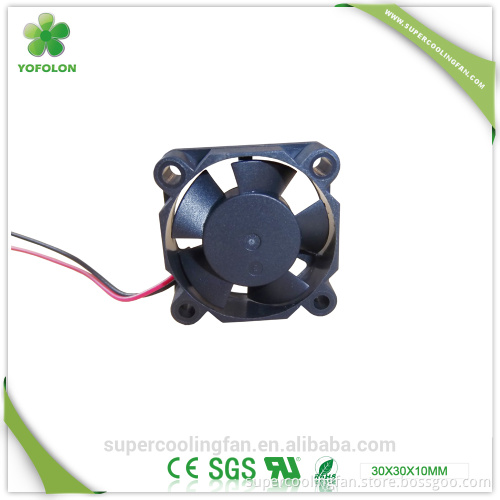

30x30x10mm 5V 12V Two ball bearing small dc toyon brushless fan with high flow competitive price

30x30x10mm 5V 12V Two ball bearing small dc toyon brushless fan with high flow competitive price

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Product Description 30x30x10mm 5V 12V Two ball bearing small dc toyon brushless fan with high flow competitive price Size: 30X30X10mm Frame: Plastic Impeller: Plastic P. B. T. Voltage: 5V, 12V Current: 0.08-0.20A Power: 0.50-1.44W Speed: 3000-10000RPM Air flow: 2.65-4.32CFM Pressure: 2.84-3.82(mmH2O) Noise: 21.47-29.86BA Bear type: Sleeve, Two Ball are Available Weight: 8G Motor: Brushless DC, auto restart Impedance & polarity protected Operation temperature: -20° C~80° C Insulation Resistance: 10 At 500VDC between lead and frame Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% Working voltage: Rated voltage± 15% Life at 25oC: Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs

Motor Protection (Selective purchasing): 1.Automatic Restart. 2.Reverse Polarity Protected 3.Water proof for IP25, IP55 4.IC function RD ,FG and PWM control are available * Two ball bearing applying * Applying NMB ball bearing inported from Japan * Short lead time 1 Week after confirm order Packaging & Shipping

FAQ
