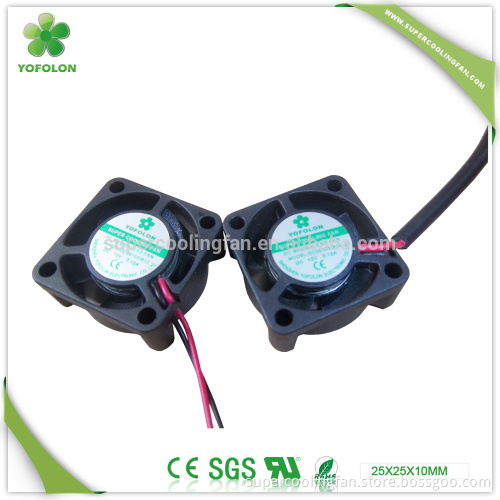

25x25x10mm YOFOLON Low volt mini cpu fan 5V high flow electric dc toyon fans

  Product Description  25x25x10mm YOFOLON Low volt mini cpu fan 5V high flow electric dc toyon fans Size: 25X25X10mm Frame: Plastic Impeller: Plastic P. B. T. Voltage:5V,12V Current: 0.08~0.20A Power: 0.70~1.44W Speed: 8000~13000RPM Air flow: 1.65~2.95FM Pressure: 2.65~6.98(mmH2O) Noise: 19.35-30.56dBA Bear type: Sleeve, Two Ball are Available Weight: 6.5G Motor: Brushless DC, auto restart Impedance & polarity protected Operation temperature: -20° C~80° C Insulation Resistance: 10 At 500VDC between lead and frame Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% Working voltage: Rated voltage± 15% Life at 25oC: Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs       Motor Protection (Selective purchasing): 1.Automatic Restart. 2.Reverse Polarity Protected 3.Water proof for IP25, IP55 4.IC function RD ,FG and PWM control are available   * Two ball bearing applying * Applying NMB ball bearing inported from Japan * Short lead time 1 Week after confirm order   Application     Our product range
DC Fan:
1.Size range:25mm~120mm
2.Voltage:5V,12V,24V,48V
3.Volume range:1.2CFM~300CFM
4.Singal type:emergency stop singal,temperature control,PWM speed adjust (the most common used)   AC Fan:
1.Size range:80mm~254mm
2.Voltage:115V,200V,220V
3.Volume range:7CFM~212CFM

 DC Blowers Fan:
1.Size range:40mm~120mm
2.Voltage:12V,24V
3.Volume range:2.6CFM~38CFM
4.Singal type:emergency stop singal,temperature control,PWM speed adjust  Packaging & Shipping     FAQ           Company Information
