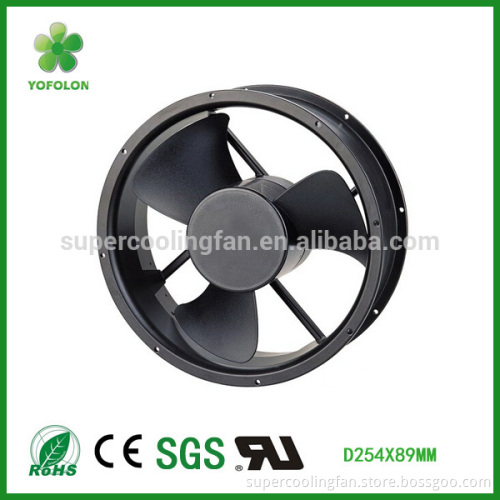

ventilation fans 220v ac axial flow fans 254x254x89mm

Specification: *Die-cast aluminum housing *Glass fiber reinforced plastic impeller,UL 94V-0 rating *Impedance protected *Leader wire or terminal is available OPERATING TEMPERATURE: Ball Bearing -30℃to + 75℃ Sleeve Bearing -10℃to + 70℃ Product Description  AC Axial Cooling Fan  Size: 254x 254x89mm Frame: Aluminum Alloy with plastic-spraying Impeller: Plastic P. B. T. Coil: Enamelled copper wire Motor: Shade Pole Induction Motor Working Voltage: AC110V/AC220V/AC380V Current: 0.18~0.90A Frequency: 50/60 (Hz) Power: 66.0W~103.0(W) Speed: 2200~2600(RPM) Air flow: 705~830(CFM) Pressure: 11.5~20.2(mmH2O) Bear type: Ball bearing / Sleeve bearing are available Lead Type: 2P Wire Lead /Terminal Noise: 65.0~80.0(dBA) Weight: 2300(g) Insulation Resistance: 10M At 500VDC between lead and frame Operation Temperature: -20° C~80° C Dielectric Strength: 1 min at 1500VAC/50-60Hz, Current<5mA Operation Humidity: 20%~85% Use of life: Ball bearing 50, 000 hours and Sleeve bearing 20, 000 hours (at 25° C)       Our product range
DC Fan:
1.Size range:25mm~120mm
2.Voltage:5V,12V,24V,48V
3.Volume range:1.2CFM~300CFM
4.Singal type:emergency stop singal,temperature control,PWM speed adjust (the most common used)   AC Fan:
1.Size range:80mm~254mm
2.Voltage:115V,200V,220V
3.Volume range:7CFM~212CFM

 DC Blowers Fan:
1.Size range:40mm~120mm
2.Voltage:12V,24V
3.Volume range:2.6CFM~38CFM
4.Singal type:emergency stop singal,temperature control,PWM speed adjust  Packaging & Shipping             Company Information
