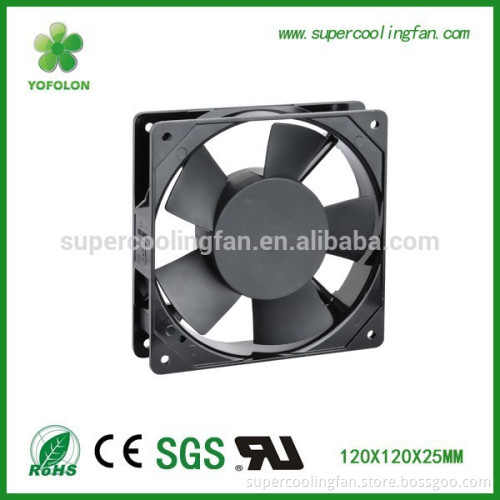

120x120x25mm 220V AC Cooling Fan 12025 high rpm ac motor fan

  Product Description 120x120x25mm 220V AC Cooling Fan Two ball bearing high rpm ac axial fan 220V AC Cooling Fan  Size: 120* 120* 25mm Frame: : Aluminum Alloy with plastic-spraying Impeller: Plastic P. B. T. Coil: Enamelled copper wire Motor: Shade Pole Induction Motor Working Voltage: AC110V/AC220V/AC380V Current: 0.05~0.18A Frequency: 50/60 (Hz) Power: 11.0W~22.8 (W) Speed: 1800~2400(RPM) Air flow: 50.0~78.0(CFM) Pressure: 2.65~4.10(mmH2O) Bear type: Ball bearing / Sleeve bearing are available Lead Type: 2P Wire Lead /Terminal Noise: 23.0~40.0(dBA) Weight: 370(g) Insulation Resistance: 10M At 500VDC between lead and frame Operation Temperature: -20° C~80° C Dielectric Strength: 1 min at 1500VAC/50-60Hz, Current<5mA Operation Humidity: 20%~85% Use of life: Ball bearing 50, 000 hours and Sleeve bearing 20, 000 hours (at 25° C)     Packaging & Shipping     Company Information    To know more about us:   1.Fast delivery-2-3 days for sample order,7-10 days for formal order 2.High warranty-hundreds of testing machine to test before shipping, RMA 0.3%,one year warranty.
3.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime
4.Certifications-CE/SGS/ROHS/Reach,ISO9001:2004
5.Strong production ablility:-Monthly output is over 200000pcs
6.High quality and low price 7.OEM and Mini order are welcome   Our Certificate and Workshop:
