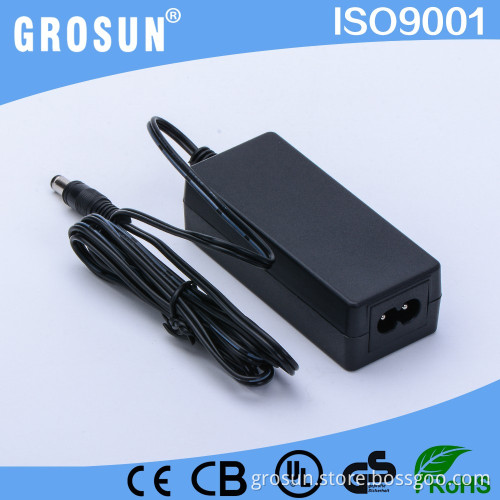

AC DC Desktops 12 volt Power Adaptor with CE UL GS RoHS Approved

Product Description Power Supply 12V 5A AC DC Adapter with CE UL GS RoHS Approved
• AC to DC Converter  • Streamline Design & Full Sealed
• OVP, OCP, SCP Function
• Meet RoHS Standard
• CEC ERP Level V,VI Applications: • Engineering Machine • Network Equipment
• Portable Tools
• Security Equipment

Electrical Specifications
Input Voltage	110-240Vac
Voltage Range	90-264Vac
Input Frequency	47-63Hz
Input Current	1.5A max>@100Vac, 1.0A max.@220Vac
Inrush Current	50A max.@220Vac
Hold Time	10ms
Linear Adjustment Rate	±2%
Load Reguation Rate	±5%
Ripple & Noise	<1% Voltage max
Protection Function	OVP. OCP.SCP

Environment Parameters
Operating Temperature	0~+40℃
Storage Temperature	-20~+80℃
Insulation Strength	Primary to Secondary: 3000Vac/5mA/3S for Type Test
Insulation Resistance	Primary to Secondary: 10Mohm min @ 500Vdc
MTBF	5000 Hours Ta=25℃
Safety Certification	UL/CUL CE GS(LVD)/EMC
Dimension(L*W*H)(mm)	118.2*51.5*35.8

Model	Voltage (V)	Current (A)	Efficiency (% min)	Ripple (P-Pmv)	Power (W max)
GS-P120020E281	12.0	5.0	82	120	60
GS-P240025E281	24.0	2.5	82	240	60
GS-P210034E281	21.0	3.0	82	200	63
GS-P190034E281	19.0	3.4	83	180	64.6

Product Pictures Company Information Company Profile, Established in 2006, is a professional manufacturer for all kinds of power supplies. our company is located in Shenzhen special economic zone. So far we have over 100 product-line staff and 20 technical staff.  our products have passed through CE, RoHS, CCC certifications. Our power products have been exported to South Africa, Taiwan, South American countries as well as domestic markets. Grosun makes what customer desires!

Our Service, Do offer you all-demensional "one-station" purchasing service. Esteem and loyalty help us to go further.
Our Main Products, • Wall mounted type adapter
• Desk-top type adapter
• Charger
• Aluminum shell power
• LED driver power
• Inverter

Which are widely used in set-top-boxes, CCTV cameras, LED lights, notebook computers, LED televisions, handheld game devices, etc.
Certifications Shipment
Export standard hard cardboard with anti-moisture polybag
The customized packaging is acceptable.
3-5 Working days for sample order, 15-25 days for bulk order
Our Service 1. For you.
We can help you save cost, beat competitor then earn more profits.

2. Quality assured.
All of our products have passed strict detection, We have many advanced machineries, like Panasonic SMT machines, Panasonic AVK auto component inserters, reflow welding machines, etc. All our products have passed Four Times' Total Testing procedures before shipment.

3. No worries.
We have long-term cooperation with some industry giants like Foxconn, Videocon and UEC. Most of our products have 2 years warranty.

4. OEM is available.
Our professional R&D staff can help you design special model in order to meet your needs. Also we can print your logo on the products if needed.
FAQ 1. Are you a trading company or a factory?
We are a factory. located in Bao’an District, Shenzhen city. which is only about 20 minutes‘ drive from the airport. You are always welcome to visit our factory at any time.
2. Free sample?
Yes, Sampling cost can be returned once bulk order is confirmed.
In some case, we can arrange for free sample if freight is collect.

3. What payment methods do you accept?
We accept TT, L/C at sight, PayPal.

4. What is your defective rate?
Quality is our first goal! Normally our defective rate is below 100ppm.

5. What is your minimum order quantity (MOQ)?
Our MOQ for each model is 1000 PCS.
Samples can be sent for your test before order.
