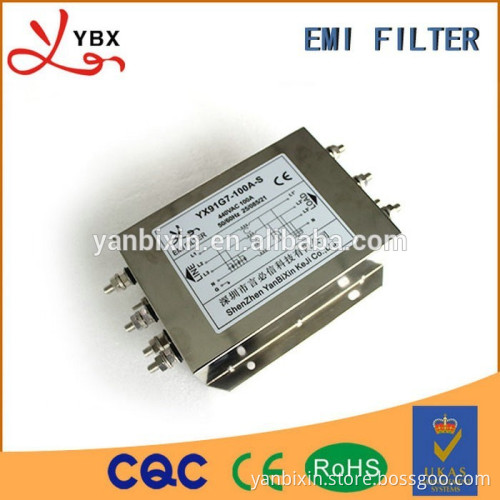

Low Pass High Quality AC line filter,100A 380V three phase

Low Pass  High Quality AC line filter,100A 380V three phase Product Description Specification

Item	High Quality AC PowerEMI FILTER
Model	High Quality AC Power EMI FILTER -YX91G7
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Rated Current	1A -100A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	115VAC/60HZ
MOQ	5pcs
Price	USD80~95/Meter
Lead Time	5~15 weekday for High Quality AC Power Entry Modules

  Elecctrical schematic
Electrical schematic    Outline dimension drawing Pictures   Certificate Packaging & Shipping   Packaging High Quality AC Power Entry Modules: CTN/6pcs N/G W.: 20/22KG Measures: 0.565*0.285*0.205 m   Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services     Sample
Sample Fee: Negotiate
Sample Time: 3~5 days

Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.   Company Information    1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CE  ROHS
3. Yearly capacity: 600000-1000000 pcs
