AC three phase three line low pass power line noise filter 40A 380V

AC three phase three line low pass power line noise filter 40A 380V Product Description Specification

Item	High Performance Three Phase Three Line Emi Filter
Model	YX82H4-40A-S
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440VAC
Rated Current	1A~80A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	115VAC/60HZ     1.2mA Max
MOQ5	5pcs
Price	USD43.5~84/Meter
Lead Time	7~18 weekday

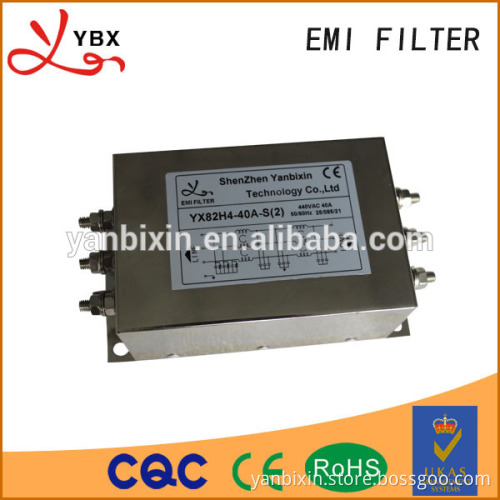

  Electrical schematic                                                       Outline dimension drawing:             The photo:         The certificate:         Packaging High Performance Three Phase Three Line Emi Filter: CTN/6pcs N/G W.: 3.3/3.8KG Measures: 0.455*0.368*0.22m Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services Sample Sample Fee: Negotiate Sample Time: 3~5 days   Payment ---Payment terms: Western Union, D/P, T/T,L/C ---Please remember to leave the correct contact information for delivery. Company Information   1. Integrates development, manufacturing and sell in-house 2. Quality assurance and certification: ISO 9001 CE CQC ROHS 3. Yearly capacity: 600000-1000000 pcs
