AC 3 phase Input EMI filter for inverter

Three Phase Three Line Emi Filter Product Description Specification

Item	High Performance Three Phase Three Line Emi Filter
Model	Three Phase Three Line Emi Filter -YX8
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440VAC
Rated Current	1A~30A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	115VAC/60HZ     1.2mA Max
MOQ	5pcs
Price	USD24.2~35/Meter
Lead Time	7~18 weekday

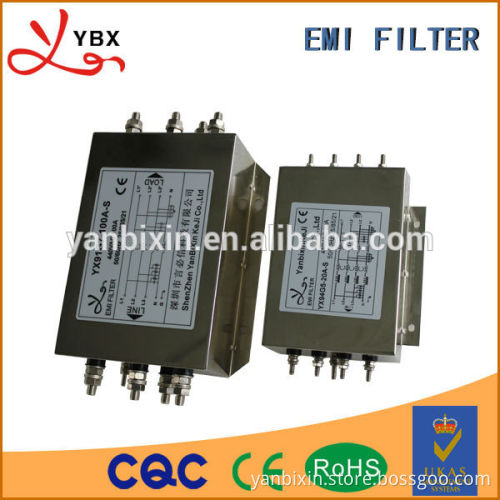

  emi filter Electrical schematic:          Outline dimension drawing:               The photo:   The certificate:         Packaging & Shipping   Packaging High Performance Three Phase Three Line Emi Filter: CTN/6pcs N/G W.: 15/17KG Measures: 0.455*0.368*0.22m   Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services Sample Sample Fee: Negotiate Sample Time: 3~5 days   Payment ---Payment terms: Western Union, D/P, T/T,L/C ---Please remember to leave the correct contact information for delivery. Company Information   1. Integrates development, manufacturing and sell in-house 2. Quality assurance and certification: ISO 9001 CE  ROHS 3. Yearly capacity: 600000-1000000 pcs
