Guangzhou Factory Single Phase PCB EMI Filter

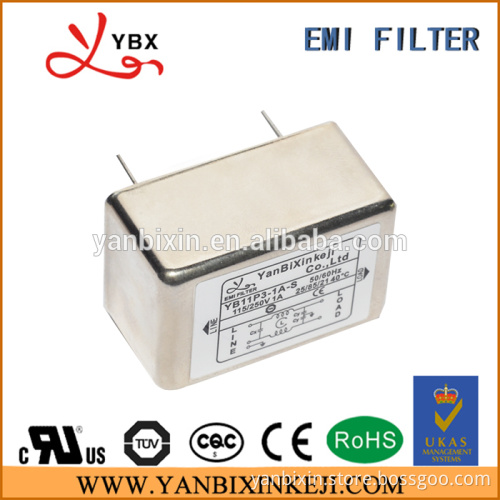

Guangzhou Factory Single Phase PCB-mounting EMI Filter
Product Description Specification

Item	PCB-mounting EMI Filter
Model	PCB-MOUNTING EMI Filter -YB11P3
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1A 3A 6A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	115VAC/60HZ     0.3mA Max.     250VAC/60HZ    0.6mA Max
MOQ	100pcs
Price	USD2~3.5/Meter
Lead Time	5~15 weekday for Plug EMI Filter


E Electrical schematic: Outline dimension drawing Pictures     Certificate Packaging & Shipping   Packaging Plug EMI Filter: CTN/300pcs N/G W.: 12/13.6KG Measures: 0.565*0.285*0.205 m   Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services     Sample
Sample Fee: Negotiate
Sample Time: 3~5 days

Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.   Company Information    1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CE TUV  ROHS
3. Yearly capacity: 600000-1000000 pcs
