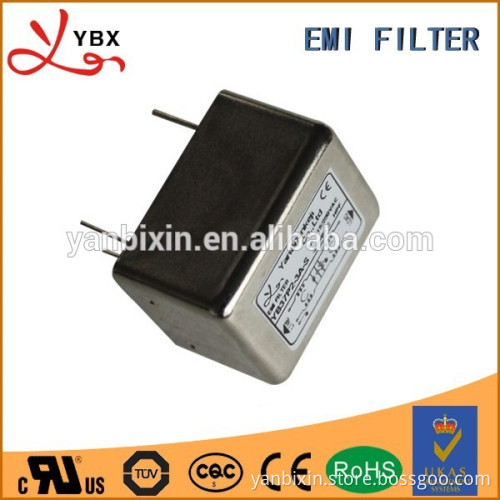

High Performance Pcb-Mounting Special Filter

High Performance Pcb-Mounting Special Filter Product Description Specification

Item	High Performance Pcb-Mounting Special Filter
Model	High Performance Pcb-Mounting Special Filter  -YB-P
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	125VAC  250VAC
Rated Current	1A~6A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	115VAC/50HZ     0.3mA Max
MOQ	100pcs
Price	USD1.65~4.5/Meter
Lead Time	7~18 weekday

  Electrical schematic Outline dimension drawing   Pictures   Certificate Packaging & Shipping   Packaging High Performance Pcb-Mounting Special Filter : CTN/120pcs N/G W.: 4KG/4.2 Measures:0.565*0.285*0.205m   Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services Sample Sample Fee: Negotiate Sample Time: 3~5 days   Payment ---Payment terms: Western Union, D/P, T/T,L/C ---Please remember to leave the correct contact information for delivery. Company Information   1. Integrates development, manufacturing and sell in-house 2. Quality assurance and certification: ISO 9000 CE CQC ROHS TUV 3. Yearly capacity: 600000-1000000 pcs
