General purpose EMI EMC filter for power suply 220V 3A

China Manufacturers Supple Ac 220V General Purpose Noise Filter Product Description Specification

Item	Ac 220V General Purpose Noise Filter
Model	Ac 220V General Purpose Noise Filter -YB-D7
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	220VAC
Rated Current	1A~6A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2200VDC
Maximum Leakage Current	250VAC/60HZ     0.8mA Max
MOQ	100pcs
Price	USD3~4/Meter
Lead Time	5~15 weekday

  Electrical schematic                    Outline dimension drawing:

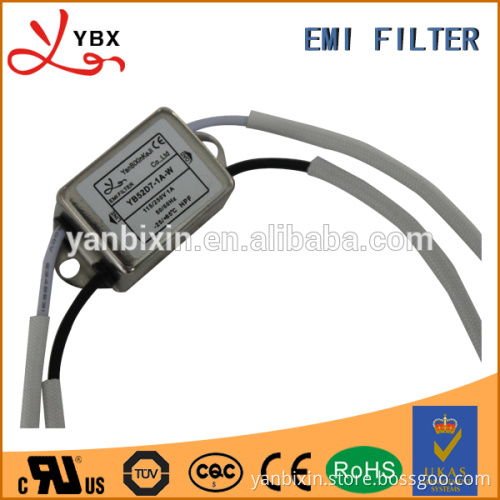

    The photo:            The certificate:     Packaging & Shipping   Packaging Ac 220V General Purpose Noise Filter: 200PCS/CTN N/G W.: 11/12KG Measures: 0.565*0.285*0.205CBM    Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services Sample Sample Fee: Negotiate Sample Time: 3~5 days   Payment ---Payment terms: Western Union, D/P, T/T,L/C ---Please remember to leave the correct contact information for delivery. Company Information   1. Integrates development, manufacturing and sell in-house 2. Quality assurance and certification: ISO 9001 cUL TUV  CE CQC ROHS 3. Yearly capacity: 600000-1000000 pcs
