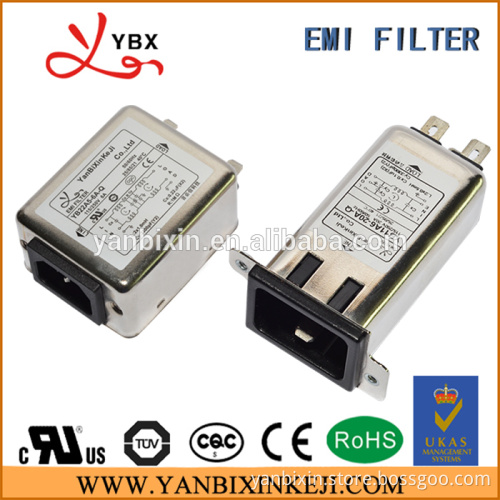

China Supply Single Phase Electromagnetic AC Socket EMI plug rfi Filter

China Supply Single Phase Electromagnetic AC Socket EMI plug  rfi Filter Product Description Specification

Item	AC Socket EMI Filter
Model	AC Socket EMI Filter -YB12A5
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1A -20A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	115VAC/60HZ     0.3mA Max.     250VAC/60HZ    0.6mA Max
MOQ	100pcs
Price	USD5~8.2/Meter
Lead Time	5~15 weekday for AC Socket EMI Filter


Electrical schematic  Outline dimension drawing Pictures   Certificate Packaging & Shipping   Packaging AC Socket EMI Filter : CTN/80pcs N/G W.: 12/13.6KG Measures: 0.565*0.285*0.205 m   Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services     Sample
Sample Fee: Negotiate
Sample Time: 3~5 days

Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.   Company Information    1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CE CQC ROHS TUV CUL
3. Yearly capacity: 600000-1000000 pcs
