China Supplier IEC 320 AC low pass Socket EMI filter

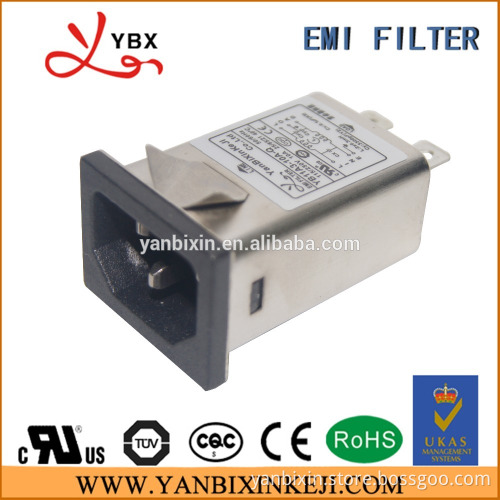

2015 China Supply IEC 320 AC Socket EMI filter Product Description Specification

Item	EMI Filter
Model	EMI Filter - YB-A3
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1A 3A 6A 8A 10A 15A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	115VAC/60HZ     0.3mA Max.     250VAC/60HZ    0.6mA Max
MOQ	100pcs
Price	USD1.8~2.7/Meter
Lead Time	5~10 weekday for EMI Filter



Model No.	Rated Current @40°C	Electrical Schematic	Mechanical Diagram	Leakage current 250V/50Hz	Terminal Options*
					Q	S	W
YB11A3-1A-Q	1A	Fig.1	Fig.1	<0.5mA	Fast-on	Solder	Wire
YB11A3-3A-Q	3A
YB11A3-6A-Q	6A
YB11A3-8A-Q	8A
YB11A3-10A-Q	10A
YB11A3-15A-Q	15A

  Electrical schematic Outline dimension drawing Pictures         Certificate                   Packaging & Shipping         Packaging EMI Filter : CTN/280pcs N/G W.: 12/13.6KG Measures: 0.565*0.285*0.205 m         Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services Sample Sample Fee: Negotiate Sample Time: 3~5 days   Payment ---Payment terms: Western Union, D/P, T/T,L/C ---Please remember to leave the correct contact information for delivery. Company Information   1. Integrates development, manufacturing and sell in-house 2. Quality assurance and certification: ISO 9001:2008 UL TUV CE CQC ROHS 3. Yearly capacity: 600000-1000000 pcs
