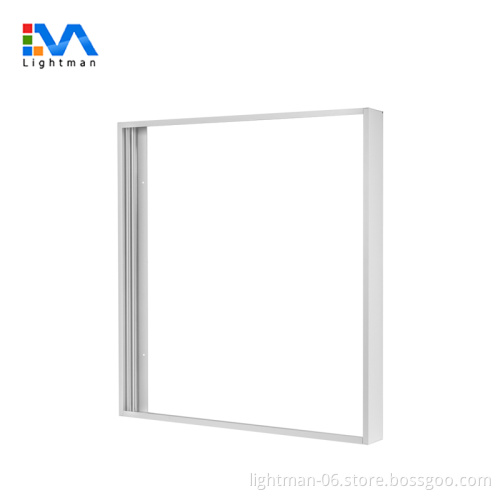

Screwless Surface Mount Frame Kit for 60x60 LED Panel Light

Product Description

You are here: Home > Product Categories > LED Panel Light Accessory > Surface Mount Ceiling Frame Kit

Surface Mount Ceiling Frame Kit is perfect to mount LED Panel Lights in locations without suspended ceiling grid (e.g. plasterboard ceilings). Surface mount kits are ideal for offices, schools, and hospitals etc where recessed mounting is not possible.

The frame has sufficient depth to accommodate the LED driver / emergency pack. (These should be placed in the centre of the panel to allow good heat dissipation).

Specification of Surface Mount Ceiling Frame Kit

Specification
Model	LM-SMK3030	LM-SMK6030	LM-SMK6060	LM-SMK6262	LM-SMK1230	LM-SMK1260
Frame Size	302x305x50mm	302x605x50mm	602x605x50mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Fit Panel Light Size	295x295mm 300x300mm	595x295mm 600x300mm	595x595mm 600x600mm	620x620mm	1195x295mm 1200x300mm	1195x595mm 1200x600mm
Weight	0.45KG	0.7KG	0.9KG	0.95KG	1.2KG	1.4KG
Color	Silver/White	Silver/White	Silver/White	Silver/White	Silver/White	Silver/White
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Mount Way	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount

Screwless Surface Mount Frame Kit for 60x60 LED Panel Light

Company Information

Screwless Surface Mount Frame Kit for 60x60 LED Panel Light

Our Services

Screwless Surface Mount Frame Kit for 60x60 LED Panel Light

FAQ

Q1: What is the type of your LED resources?
A: We use Epistar SMD2835 for led light source with high brightness and low decay, and SMD5050 for RGB led panel light. Different color termperature for your option,such as 2700-3200K,4000-4500K,5000-5500K,6000-6500K. And led CRI is more than 80, and beam angle is biger than 120°.

Q2: What is the material of your LGP?
A: Our LGP is PMMA, and the thickness has 3mm and 4mm for option, which are from ChiMei Optoelectronics Corp or Japan Mitsubishi Corporation.

Q3: What is the material of your led panel light frame and diffusion plate?
A: Our led panel light frame is 6063 aluminum alloy with better heat dissipation. We use 1.5mm anti-fire PC diffusion plate.

Q4: What are your available led panel light sizes?
A: We have many different led panel light shape and size such as:
Round led panel light size: 90mm,120mm,145mm,160mm,180mm,200mm, 240mm,300mm etc;
Glass led panel light size: 120mm,160mm,200mm,240mm etc;

Square:295x295mm, 595x595mm etc. Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
And if you need, we can make customized led panel light size.

Q5: Do you have dimmable led panel lights?
A: Yes,we have several types of dimmable LED panel lights, triac dimmable, 0-10v dimmable, 24VDC & CCT
& RGB dimmable LED panel light with remote controller or DMX.

Q6: How do you guarantee your product quality?
A: From material purchasing to production finishing, we have a full set of strict inspection process to ensure exceptional quality problem, including IQC, QC&A, OQC. Moreover, before production, our technology department engineers will assess the production process to ensure each process in the right way.

Q7: Can you make customized products?
A: Yes, most of our products can be made to fit your individual application. OEM and ODM are accepted.

Q8: Can you offer cheap shipping cost to import to my country?

A: we have long-standing forwarder which can offer the most competitive price for your reference. Normally, For small order, express will be best .And for bulk order, it is better to by sea but need much time.

Q9: How about your packing?

A: We have two packing solutions for your choices:

Packing Options	PCS/CTN	Carton Size	G.W
Option 1 for 600x600 led panel light	10PCS/CTN	70x65x48 cm	15KG
Option 2 for 600x600 led panel light	20PCS/CTN	70x65x48 cm	29KG

Q10: Hong long warranty time do you offer?

A: We offer 3 Years and 5 Years Warranty according to customers' requirements with price adjustment.

situation 1	Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, Lightman will provide free new or repaired products based on the proof-documents.
situation 2	If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, Lightman will provide paid maintence within warranty period.
