60x60 Surface Mounted LED Panel Light Frame
  • 60x60 Surface Mounted LED Panel Light Frame
  • 60x60 Surface Mounted LED Panel Light Frame
  • 60x60 Surface Mounted LED Panel Light Frame
  • 60x60 Surface Mounted LED Panel Light Frame
  • 60x60 Surface Mounted LED Panel Light Frame
  • 60x60 Surface Mounted LED Panel Light Frame
60x60 Surface Mounted LED Panel Light Frame
60x60 Surface Mounted LED Panel Light Frame
60x60 Surface Mounted LED Panel Light Frame
60x60 Surface Mounted LED Panel Light Frame
60x60 Surface Mounted LED Panel Light Frame
60x60 Surface Mounted LED Panel Light Frame

60x60 Surface Mounted LED Panel Light Frame

  • $6.50
    2-499 piece
  • $6.00
    500-999 piece
  • $5.00
    1000-1999 piece
  • $4.50
    ≥2000 piece
Min. Order:
1 piece
Min. Order:
1 piece
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C,Western Union,D/P,D/A,T/T,MoneyGram
Product Description
Product Description

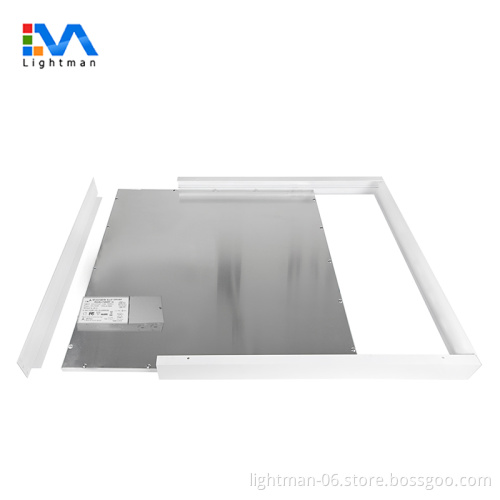

Surface Mounted Frame for LED Panel Light 60x60



Surface Mount Ceiling Frame Kit is perfect to mount LED Panel Lights in locations without suspended ceiling grid (e.g. plasterboard ceilings). Surface mount kits are ideal for offices, schools, and hospitals etc where recessed mounting is not possible.



The frame has sufficient depth to accommodate the LED driver / emergency pack. (These should be placed in the centre of the panel to allow good heat dissipation)



Easy to fit:



1. Screw three frame sheets together first.



2. Screw to the surface that the led panel light is to be positioned.



3. Slide led panel light inside the frame.



4. Place driver/power pack on the back of the led panel light and make sure it is connected to the power supply.



5. Assemble the final end frame sheet to complete the installation.





Specification of Surface Mount Ceiling Frame Kit

Specification

Model

PL-SMK3030

PL-SMK6030

PL-SMK6060

PL-SMK6262

PL-SMK1230

PL-SMK1260

Frame Size

302x305x50mm

302x605x50mm

602x605x50mm

622x625x50mm

1202x305x50mm

1202x605x50mm

Fit Panel Light Size

295x295mm

300x300mm

595x295mm

600x300mm

595x595mm

600x600mm

620x620mm

1195x295mm

1200x300mm

1195x595mm

1200x600mm

Weight

0.45KG

0.7KG

0.9KG

0.95KG

1.2KG

1.4KG

Color

Silver/White

Silver/White

Silver/White

Silver/White

Silver/White

Silver/White

Material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Mount Way

Surface Mount

Surface Mount

Surface Mount

Surface Mount

Surface Mount

Surface Mount





Surface Mounted Frame for LED Panel Light 60x60





Surface Mounted Frame for LED Panel Light 60x60

Surface Mounted Frame for LED Panel Light 60x60

Surface Mounted Frame for LED Panel Light 60x60

Surface Mounted Frame for LED Panel Light 60x60Surface Mounted Frame for LED Panel Light 60x60

Surface Mounted Frame for LED Panel Light 60x60
