Aluminum surface mount ceiling frame kit for surface mounted led panel light 600x600

Product Description

You are here: Home > Product Categories > LED Panel Light Accessory > Surface Mount Ceiling Frame Kit

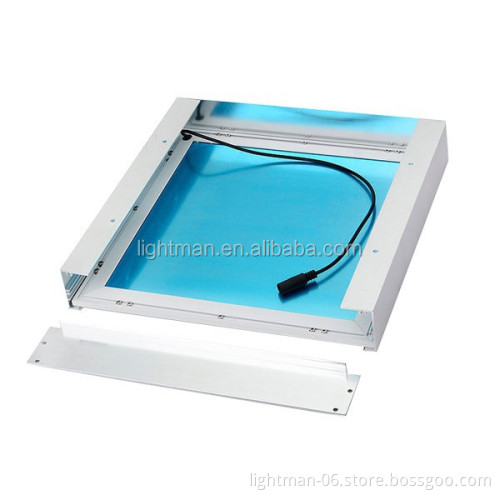

Surface Mount Ceiling Frame Kit is perfect to mount LED Panel Lights in locations without suspended ceiling grid (e.g. plasterboard ceilings). Surface mount kits are ideal for offices, schools, and hospitals etc where recessed mounting is not possible.

The frame has sufficient depth to accommodate the LED driver / emergency pack. (These should be placed in the centre of the panel to allow good heat dissipation)

Easy to fit:

1. Screw three frame sheets together first.

2. Screw to the surface that the led panel light is to be positioned.

3. Slide led panel light inside the frame.

4. Place driver/power pack on the back of the led panel light and make sure it is connected to the power supply.

5. Assemble the final end frame sheet to complete the installation.

Specification of Surface Mount Ceiling Frame Kit

Specification
Model	LM-SMK3030	LM-SMK6030	LM-SMK6060	LM-SMK6262	LM-SMK1230	LM-SMK1260
Frame Size	302x305x50mm	302x605x50mm	602x605x50mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Fit Panel Light Size	295x295mm 300x300mm	595x295mm 600x300mm	595x595mm 600x600mm	620x620mm	1195x295mm 1200x300mm	1195x595mm 1200x600mm
Weight	0.45KG	0.7KG	0.9KG	0.95KG	1.2KG	1.4KG
Color	Silver/White	Silver/White	Silver/White	Silver/White	Silver/White	Silver/White
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Mount Way	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
