100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

$7.50

2-4999 piece
$7.00

5000-9999 piece
$6.70

≥10000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

40W 600x600 595x595 LED Backlit Panel Lamp

Specification

You are here: Home > Product Categories > Dimmable LED Panel Light >Backlit- 600x600 LED Panel Light

100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

Specifications of 600x600 Backlit LED Panel Light:

Model No	PL-6060-40W
Power Consumption	40W
Dimension	595x595x30mm
LED Qty(pcs)	48pcs
LED Type	9V 1.5W SMD2835
Color Temperature (K)	2800K – 6500K
Color	Warm/Natural/Cool White
Luminous Flux (Lm/w)	100lm/w
Beam Angle (degree)	>120°
CRI	>80
Power Factor	>0.9
Input Voltage	AC 220V - 240V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PS diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3Years

What are the advantages of Lightman Backlit LED Panel Light?
• Back-lit led light panel is using the high quality,uniformity,stable voltage,current led,small brightness and wavelength scope as the light source.
• Different sizes of LED light panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED backlight panel using PS materials,more than 90% light output,even light,no glare.
• Excellent heat disspation performance effectively ensure the stability for long-term use.
• The beam angle of led panel light is120°.

• The led panel light is 0-10V dimmable.
• We will provide 3 years warranty for backlit led panel light.
• Constant current driver with a power factor of 0.9.
• LED panel lights are CE, ROHS, TUV and EMC certified etc.

Product Details

100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

Product Application

100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

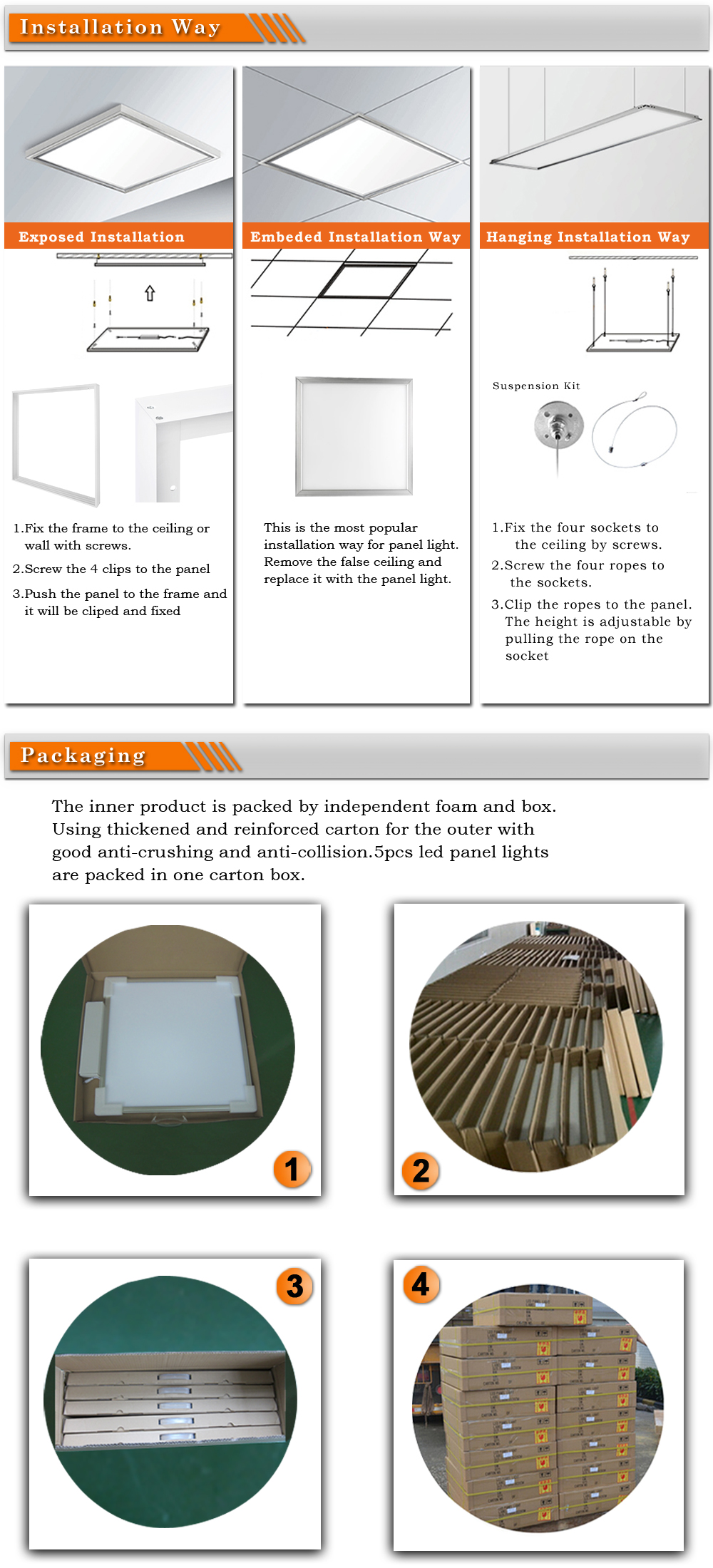

Installation&Packing

Company Information

100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

Our Services

100lmw 40W 600x600 595x595 LED Backlit Panel Lamp

FAQ

Q1: What is the type of your LED resources?
A: We use Epistar SMD2835 for led light source with high brightness and low decay, and SMD5050 for RGB led panel light. Different color termperature for your option,such as 2700-3200K,4000-4500K,5000-5500K,6000-6500K. And led CRI is more than 80, and beam angle is biger than 120°.

Q2: What is the material of your LGP?
A: Our LGP is PMMA, and the thickness has 3mm and 4mm for option, which are from ChiMei Optoelectronics Corp or Japan Mitsubishi Corporation.

Q3: What is the material of your led panel light frame and diffusion plate?
A: Our led panel light frame is 6063 aluminum alloy with better heat dissipation. We use 1.5mm anti-fire PC diffusion plate.

Q4: What are your available led panel light sizes?
A: We have many different led panel light shape and size such as:
Round led panel light size: 90mm,120mm,145mm,160mm,180mm,200mm, 240mm,300mm etc;
Glass led panel light size: 120mm,160mm,200mm,240mm etc;

Square:295x295mm, 595x595mm etc. Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
And if you need, we can make customized led panel light size.

Q5: Do you have dimmable led panel lights?
A: Yes,we have several types of dimmable LED panel lights, triac dimmable, 0-10v dimmable, 24VDC & CCT
& RGB dimmable LED panel light with remote controller or DMX.

Q6: How do you guarantee your product quality?
A: From material purchasing to production finishing, we have a full set of strict inspection process to ensure exceptional quality problem, including IQC, QC&A, OQC. Moreover, before production, our technology department engineers will assess the production process to ensure each process in the right way.

Q7: Can you make customized products?
A: Yes, most of our products can be made to fit your individual application. OEM and ODM are accepted.

Q8: Can you offer cheap shipping cost to import to my country?

A: we have long-standing forwarder which can offer the most competitive price for your reference. Normally, For small order, express will be best .And for bulk order, it is better to by sea but need much time.

Q9: How about your packing?

A: We have two packing solutions for your choices:

Packing Options	PCS/CTN	Carton Size	G.W
Option 1 for 600x600 led panel light	5PCS/CTN	70x25x65 cm	24KG
Option 2 for 600x600 led panel light	10PCS/CTN	76x26x68 cm	45KG

Q10: Hong long warranty time do you offer?

A: We offer 3 Years and 5 Years Warranty according to customers' requirements with price adjustment.

situation 1	Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, Lightman will provide free new or repaired products based on the proof-documents.
situation 2	If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, Lightman will provide paid maintence within warranty period.
