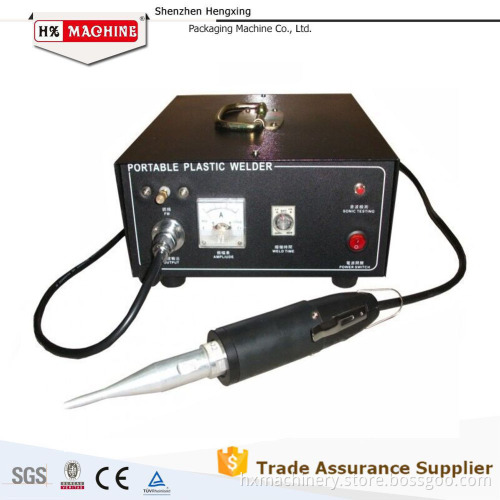

HX-300 Portable Ultrasonic Plastic Spot Welder

Portable Ultrasonic Spot welder

Mainly application of handheld ultrasonic spot welder/spot welding

Spot welding, riveting, screw imbedding, appliqué welding, often used in the field of stationery industries, consume electronics industry and electronics industry, PVC,PET,acrylic,ABS,PP and other thermoplastic spot welding

Introduction of Ultrasonic Handheld spot welder/welding

ultrasonic welding machine is applied for plastic welding process, like, ultrasonic ABS welding, ultrasonic Acrylic welding, ultrasonic PVC and ABS welding, ultrasonic PA welding, ultrasonic PC welding, ultrasonic PE welding, ultrasonic pp welding, ultrasonic PE welding, ultrasonic PP welding, ultrasonic PS welding, ultrasonic PVC welding.

Characteristics of handheld ultrasonic spot welding

1.Proprietary anti-corrosion technology, even in the harsh acid salt (such as electroplating factory) working environment, the service life of up to ten years.
2. With imported high-power device driver, the output power of the strong.
3. It is the latest line of forward control; ultrasonic wave density can increase by more detailed cleaning, cleanliness higher.
4. Years of continuous improvement, thoroughly tempered, quality, rock-solid

Advantages of handheld ultrasonic spot welder/welding

1:low power consumption, firm welding, low noise, small-sized, dust-proof, high performance 2:automatic frequency-tuned system: take PLL for the ultrasonic circuit control 3: with pedal switch to convenient control 4: compacted, space-saved, convenient to transport

Model

HX-300

Power

300w,500w,800w,1500W

Voltage

220V/50Hz 110V/60Hz

Output Frequency

20khz/28kHz/35kHz/40kHz

Cohesion Specification

1-20mm/any shape and pattern

Cooling mode

Fan cooling

Welding material

PP/PE/PET/ABS/ACRYLIC/PVC/FABRIC/NON-WOVEN CLOTH/NYLON

Working mode

Separated excited

Volume

268*168*198mm(L*W*H)

Welding pressure

5-6kgs/cm2

Net weight

10KG

Gross weight

15kgs
