CNC CRT Monitor Repair to LCD Panel Replacement

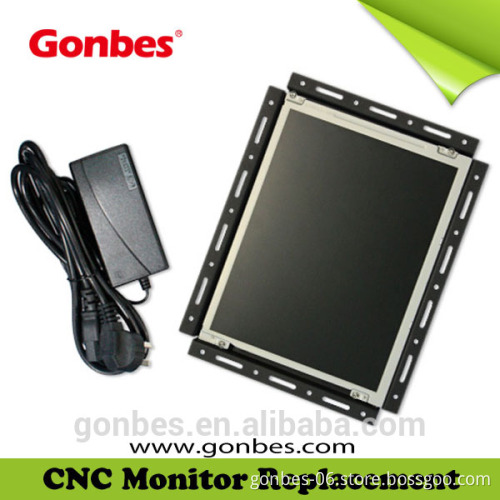

                 CNC CRT Monitor Repair to LCD Panel Replacement   Gonbes Technology Co., Ltd (Gonbes) is the leading manufacturer of video converters such as game converters and CNC monitor converters. According to the professional experience in the replacing & repairing industrial equipment and the important feedback from customers on the old converter GBS-8218, we launched an innovative industrial video converter GBS-8219 after years of developing and testing.   GBS-8219 achieves full automatic conversion from industrial video signal MDA / CGA / EGA / RGB…to standard VGA. It also brings tangible benefit and convenience to our customers in terms of repairing & replacing industrial monitor. In order to provide more convenient operation, here we are glad to introduce our new launched GBS-8219 & Industrial monitor all-in-one model GBS-8229.     Application: repairing & replacing CNC / Industrial CRT monitor, like Fanuc, Siemens, Mazak,  Heidenhain, Hitachi, Toshiba, Mitsubishi, Sharp, Tatung, Totoku, and Magnetek, and etc.     The replacement : GBS8229 = old CNC CRT monitor Available sizes: 8.4 inches, 10.4 inches, 12.1inches and 15 inches.           Feature specifications

Input	Signals	MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr
	Interface	9pin,3pin,6pin,14pin,20pin,25pin
	Horizontal Frequency Rate(H)	12kHz to 40kHz automatically recognized
Output	Supports	15pin VGA,Resolution:800*600/60HZ or custom-resolution
	Interface	D-Sub 15 PIN standard VGA port
Power	DC 12V 1.0A

    Note:   1. YPbPr = YUV       2. Input Horizontal Frequency Rate 12 kHz to 40 kHz automatically recognized. 3. Support RGB and YPbPr 4. Support Interlaced Scanning and Line by Line Scanning. 5. Support Vertical Resolution from line200 to line 600 automatically recognized. 6. Support variable Horizontal Resolution automatically recognized. 7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized. 8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.           Accessories& Details

Item	QTY	Remarks
User’s Manual	1	English
Power Adaptor	1	DC12V,1A
half 9pin cable	1
9pin M-F cable	2	1 Male + 1 Female

      Definition of 9 Pin cable

Name	Wire color	Signal
A	Silver web	Shield
B	Black wire	Ground(GND)
C	White wire	Vertical Frequency Rate(V)
D	Orange wire	Horizontal Frequency Rate(H)
E	Blue wire	Blue(B)
F	Green wire	Green(G)
G	Red wire	Red(R)
H	Brown wire	Undefined(null)

                              ......          Thank you for coming! Welcome to contact us for detailed information.
