8.4 10.4 12.1 inch top quality cheap CNC machine lcd monitor

8.4 10.4 12.1 inch top quality cheap CNC machine lcd monitor         Application:   Repaire & replace CNC replacement monitor CRT to LCD, like Fanuc, Siemens, Mazak, Heidenhain, Hitachi, Toshiba, Mitsubishi, Sharp, Tatung, Totoku, and Magnetek, and etc.   The replacement : GBS8229 = old CNC CRT monitor + XVGA Converter Available sizes: 8.4 inches, 10.4 inches, 12.1inches and 15 inches   Feature specifications

Input	Signals	TTL MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr
	Interface	9pin,3pin,6pin,14pin,20pin,25pin
	Horizontal Frequency Rate(H)	12kHz to 40kHz,  auto recognized
Output	Supports	15pin VGA,Resolution:800*600/60HZ, or custom
	Interface	D-Sub 15 PIN standard VGA port
Power	DC 12V 1.0A

  Note:   1. YPbPr = YUV       2. Input Horizontal Frequency Rate 12 kHz to 40 kHz automatically recognized. 3. Support RGB and YPbPr 4. Support Interlaced Scanning and Line by Line Scanning. 5. Support Vertical Resolution from line200 to line 600 automatically recognized. 6. Support variable Horizontal Resolution automatically recognized. 7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized. 8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.      Delivery Carton Contents:

Item	QTY	Remarks

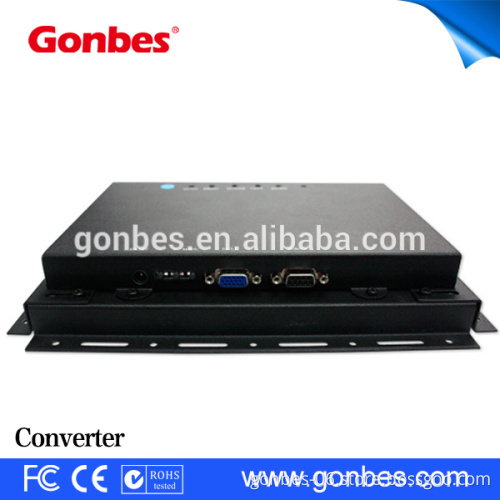

GBS8229	1	TTL Monochrome Monitor Replacement Converter LCD Monitor
User’s Manual	1	English
Power Adaptor	1	DC12V,1A
half 9pin cable	1
9pin M-F cable	2	1 Male + 1 Female

  Definition of 9 Pin cable:     Export Packing   Quantity: 1unit/ctn Carton Size:  39*33.2*15 cm
Carton G.W.: 3.1 kg
