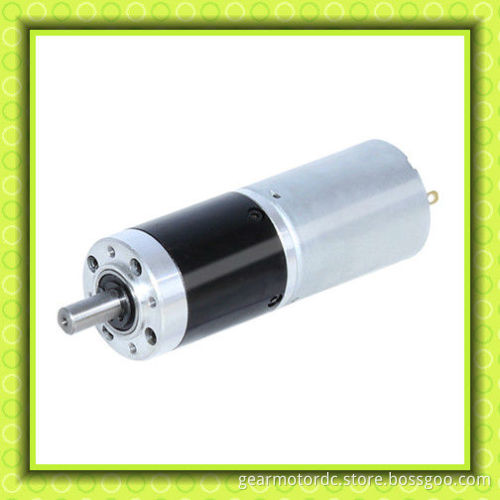

12mm-60mm precision gear motor low noise brushless dc motor with planetary gearbox
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length (L) mm | 31.0 | 31.0 | 38.5 | 38.5 | 38.5 | 48.4 | 48.4 | 48.4 | 48.4 | 55.8 | 55.8 | 55.8 |
No-load Speed r/min | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 22 | 16 | 11 |
Rated speed r/min | 970 | 695 | 257 | 189 | 133 | 71 | 51 | 36 | 26 | 19 | 14 | 9.8 |
Rated torque N.m | 0.063 | 0.089 | 0.22 | 0.29 | 0.42 | 0.71 | 0.98 | 1.4 | 1.9 | 2.3 | 3 | 3 |
Max Torque N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 |
