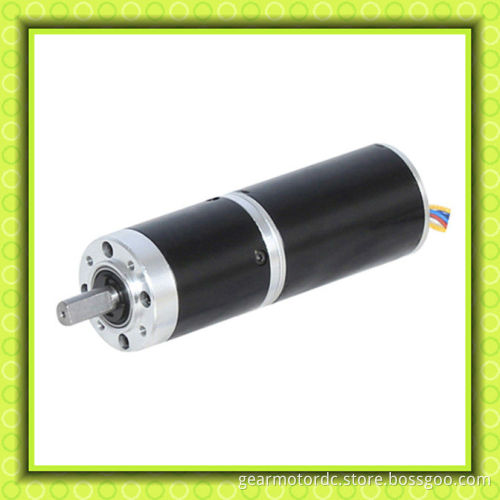

24v brushless planetary dc gear motor

24v brushless planetary dc gear motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length (L)      mm	31.0	31.0	38.5	38.5	38.5	48.2	48.2	48.2	48.2	55.4	55.4	55.4
No-load Speed                     r/min	539	386	143	105	74	39	28	20	14	11	7.6	5.4
Rated speed                       r/min	431	309	114	84	59	31	23	16	12	9	7	4
Rated torque                     N.m	0.10	0.14	0.34	0.46	0.66	1.1	1.6	2.2	2.5	3	3	3
Max. permissible load in a short time   N.m	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9

    Size Drawing:   *Product/Service(We Sell)   We can make pmdc motor, micro motor,micro dc motor,mini motor,mini dc motor,3v dc motor,6v dc motor,6v dc gear motor,12v dc motor,24v dc motor,12 volt dc gear motor,24v dc gear motor, High Torque Gear Motor,low rpm gear motor,steel gear motor,plastic gear motor,gear box motor,dc motor with gearboxplanetary gear motor,dc motor.electric dc motor,electric motor,geared motor,brushless dc motor,vibration dc motor,coreless dc motor,spur dc gear motor,gear reducer,ac motor,ac synchronous motor,vending machine motor,door lock motor,remote lock motor etc. we have over 100 series and thousands of dc motors and gear motors for your choise, any interests or question please contact us freely, any other special requests can be customized.
