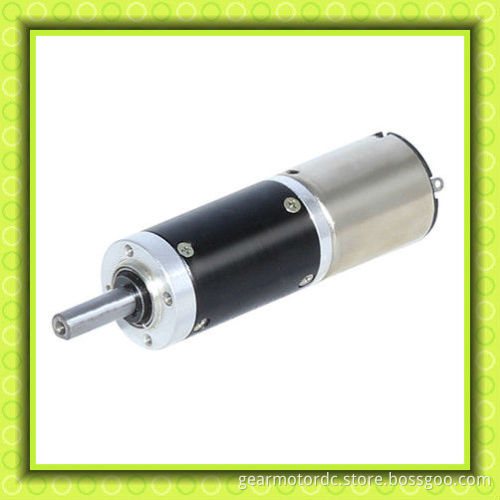

electric curtain gear motor 12v 24v
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
24JS10K24ZY30-12100 Reduction ratio | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 |
Number of gear trains | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length (L) mm | 34.0 | 34.0 | 34.0 | 42.5 | 42.5 | 42.5 | 42.5 | 50.8 | 50.8 | 50.8 | 50.8 |
No-load Speed r/min | 714 | 526 | 370 | 196 | 141 | 100 | 72 | 53 | 38 | 27 | 19 |
Rated speed r/min | 550 | 405 | 285 | 151 | 108 | 77 | 55 | 41 | 29 | 21 | 15 |
Rated torque N.m | 0.045 | 0.062 | 0.087 | 0.15 | 0.21 | 0.29 | 0.41 | 0.49 | 0.69 | 0.096 | 1 |
Max Torque N.m | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
