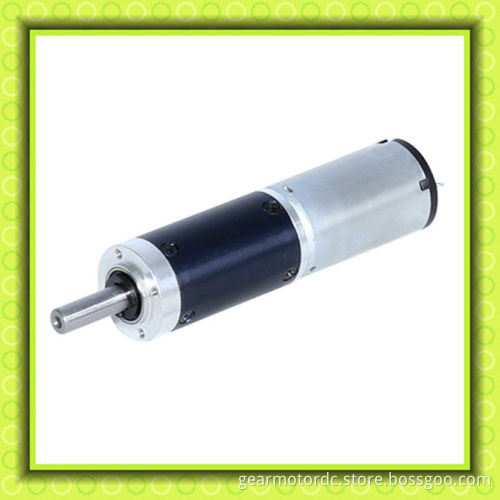

low noise metal mini planetary gearbox dc motor 12v 24v

 Product Description low noise metal mini planetary gearbox dc motor 12v 24v     motor with gear data sheet

Reduction ratio	5	16	19	36	55	77	114	168	234	276	509	604	713	842	994
Number of gear trains	1	1	2	3	3	3	3	4	4	4	4	4	4	5	5
Length (L) mm	30	35	35	40	40	40	40	40	45	45	45	45	45	50	50
No-load Speed r/min	1200	375	315	166	110	78	53	35	25	21	12	10	11	8	6
Rated speed r/min	900	280	236	124	80	58	39	26	19	16	9	7	8	6	4
Rated torque N.m	0.013	0.04	0.046	0.08	0.12	0.17	0.24	0.32	0.45	0.53	0.91	1.0*	1.0*	1.0*	1.0*
Max Torque N.m	0.4	0.4	0.6	0.6	0.6	0.6	0.6	1.0	1.0	1.0	1.5	1.5	1.5	1.5	1.5

    other similar models:     Packaging & Shipping         Our Services   we make and supply diameter rang 12-50mm dc gear motor, 3v 6v 9v 12v 24v, torque 0.1-600kg.cm, output speed rpm from 0.5-2000rpm   Typical Applicatons:     1. Bank System: ATM,   2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine   3. Security: Door Lock, Safebox,   4.  Sanitary Applications: Towel spray dispenser, soap dispenser, air freshener dispenser, hand dryer ...   5. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment...   6.Robot and Robot Arm   7. Home Appliance: Kitchen Appliance, TV Lift,  Auto Cleaner, Auto Toilet Lid...   8. Office Products: Printer, Paper Shredder, Label Machine, Company Information   Shenzhen Wicta Industry Co. Ltd was established in 2012. Our products have been widely used in USA, Germany, Italy, and other Southeast Asia and Middle East Africa and other countries and regions.   Extra quality the our best way to show sincerest respect to our customers. We have got CE, RoHS and other certification.   Wicta gear motors main products are low rpm dc gear motor, Micro gear mbox otor, spur gear motor, planetary gear motor.   Gear motor include: 12v dc gear motor,24 volt dc gear motor or according customer required the motor diameter range form 12mm-50mm.   We use high speed dc motor equipped with high reduction ratio to get low rpm and high torque, these products are widely used in automation industries.   At the same time, we also supply, brushless motor, planetary gear motor, ac synchronous motor, etc. We have over 100 series and thousands of dc motors and gear motors for your choice   FAQ   Q: You are a agent or have your own factory? A: Yes we have 2 factories(one gearbox and one dc motor factories). welcome to visit.   Q: If your dc motor/gear mtor can be customized? A: YES. such as the output shaft,output speed,torque,shape related spares etc.special requirements can be customized as your design.   Q: Before I place sample order, what should I offer? A: Your requirements of Voltage, Rated speed and Rated torque, setup dimension limitation etc. these are basic inforamtion.   Q: What's payment terms you can accept? A: Paypal, T/T. small order 100%,larger order deposit 50%, banlance paid before the shipment.   Q:Do you have any stock motors? A:NO, as all our motors are made according to costomers' requirements   Q: What is shipping method? A: For samples, generally we use the express, like the DHL, FedEx, UPS. We also can get a favorable discount from our forwarder. For big cargos, it is ok to ship via sea or air, generally we accept FOB, CIF...
