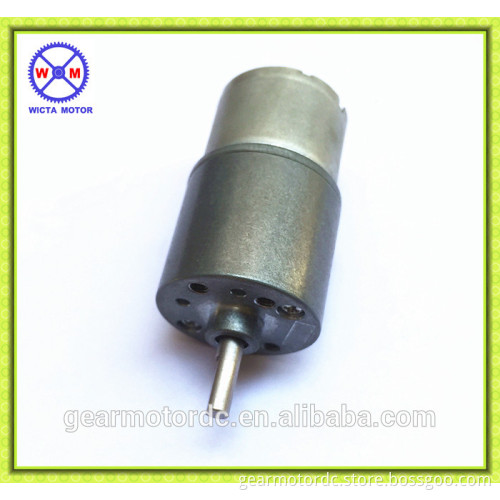

Reversible carbon brush low rpm 3v micro spur dc gear reductor
- Delivery Time:
- 25 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description
1. Reversible carbon brush low rpm 3v micro spur dc gear reductor Application: Vending machine, Blinds , special for air freshener dispenser, Soap dispenser, Banknote validation equipment, cigarettes, BBQ, electrical lock, pill dispenser, security, gas oven, window blinds, Pellet Stoves, Small Robot Part, coffee machine and so on.
1.1 DC motor specifictation
1.2 Gear Motor Data sheet
Note: The Voltage and Shaft dimension can be customized. Certifications
Company Information
Wicta gear motors can make dc motor, dc gear motor. Gear motor include: 12v dc gear motor,24 volt dc gear motor according customer required. We use high speed dc motor equipped with high reduction ratio to get low rpm and high torque, these products are widely used in automation industries. At the same time, we also supply, brushless motor, planetary gear motor, ac synchronous motor, etc. We have over 100 series and thousands of dc motors and gear motors for your choice. If have any questions or problems about motors, we welcome contact us. Contact information
Shenzhen Wicta Industry Co., Ltd Add: No.9 Caizi North Rd. Shangmugu Pinghu 518111 Shenzhen China Tel: 0086-755-29369246 Phone: 0086-138 4917 5677 Web: www.gearmotordc.com https://gearmotordc.en.alibaba.com Our Services Gear motor Testing, Packing and Shipping
Producing and assembling
Shipping and payment terms
FAQ Q: You are a agent or have your own factory? A: Yes we have factory. welcome to visit. Q: If your dc motor/gear mtor can be customized? A: YES. such as the output shaft,output speed,torque,shape related spares etc.special requirements can be customized as your design. Q: Before I place sample order, what should I offer? A: Your requirements of Voltage, Rated speed and Rated torque, setup dimension limitation etc. these are basic inforamtion. Q: What's payment terms you can accept? A: Paypal, T/T. small order 100%,larger order deposit 50%, banlance paid before the shipment. Q:Do you have any stock motors? A:NO, as all our motors are made according to costomers' requirements Q: What is shipping method? A: For samples, generally we use the express, like the DHL, FedEx, UPS. We also can get a favorable discount from our forwarder. For big cargos, it is ok to ship via sea or air, generally we accept FOB, CIF...


Serial Number | 3810 | 3821 | 3827 | 3843 | 3861 | 3890 | 38139 | 38188 | 38317 | 38392 | 38720 |
Gearbox L mm | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
No load speed rpm | 380 | 181 | 141 | 89 | 62 | 43 | 27 | 20 | 12 | 10 | 5 |
Rated speed rpm | 304 | 136 | 106 | 67 | 47 | 32 | 21 | 15 | 9 | 7 | 3 |
rated torque kg.cm | 0.13 | 0.22 | 0.31 | 0.47 | 0.67 | 0.79 | 1.18 | 1.49 | 2.43 | 3.01 | 4.95 |
Max Torque kg.cm | 0.6 | 1.0 | 1.5 | 1.5 | 3 | 3 | 6 | 6 | 10 | 10 | 10 |
Gear Ratio Stage | 2 | 3 | 4 | 5 | 6 | 7 |
Gear Ratio | 17 | 23 | 55 | 120 | 277 | 607 |
21 | 30 | 71 | 161 | 360 | 797 | |
46 | 97 | 215 | 477 | 1055 | ||
Gearbox Length(mm) | 19 | 21 | 23 | 25 | 27 | 29 |
