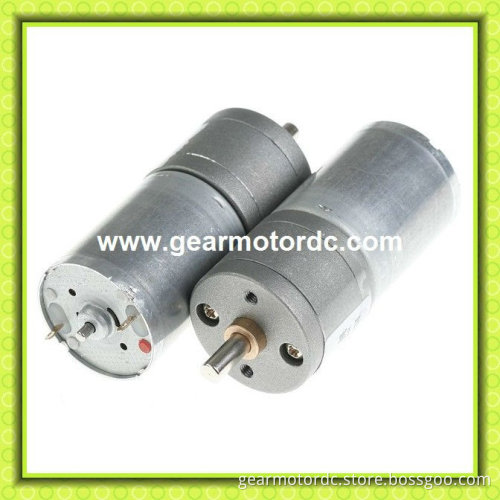

9v mini center shaft high rpm with encoder dc electric motors

9v dc electric motors   LT25GA3700660 data sheet

Reduction ratio	10	25	50	78	100	125	150	200	250	312	488
Gearbox L mm	16.2	16.2	17.5	17.5	19.2	19.2	19.2	19.2	20.5	20.5	20.5
No load speed rpm	600	240	120	77	60	48	40	30	24	19	12
Rated speed rpm	480	180	90	58	45	36	30	22	18	15	8
rated torque kg.cm	0.24	0.55	1.09	1.52	1.95	2.44	2.93	3.54	4.43	5	5
Max Torque kg.cm	5	5	5	5	5	10	10	10	10	10	10

  9v mini center shaft high rpm  with encoder dc electric motors   dimension of the gear motor     Reference pictures:     Products Certifications:   Packaging and Shipping: Our Services:   We can make dc motor, dc gear motor, gear motor include: 12v dc gear motor,24 volt dc gear motor, we use high speed dc motor equipped with high reduction ratio to get low rpm and high torque, these products are widely used in automation industries. At the same time, we also supply coreless motor, brushless motor, planetary gear motor, ac synchronous motor, etc. we have over 100 series and thousands of dc motors and gear motors for your choice,     Q: You are a agent or have your own factory?   A: Yes we have factory. welcome to visit.       Q: If your dc motor/gear mtor can be customized?   A: YES. such as the output shaft,output speed,torque,shape related spares etc.special requirements can be customized as your design.       Q: Before I place sample order, what should I offer?   A: Your requirements of Voltage, Rated speed and Rated torque, setup dimension limitation etc. these are basic inforamtion.       Q: What's payment terms you can accept?   A: Paypal, T/T. small order 100%,larger order deposit 50%, banlance paid before the shipment.       Q:Do you have any stock motors?   A:NO, as all our motors are made according to costomers' requirements       Q: What is shipping method?   A: For samples, generally we use the express, like the DHL, FedEx, UPS. We also can get a favorable discount from our forwarder. For big cargos, it is ok to ship via sea or air, generally we accept FOB, CIF...

  Any question please contact us freely.
