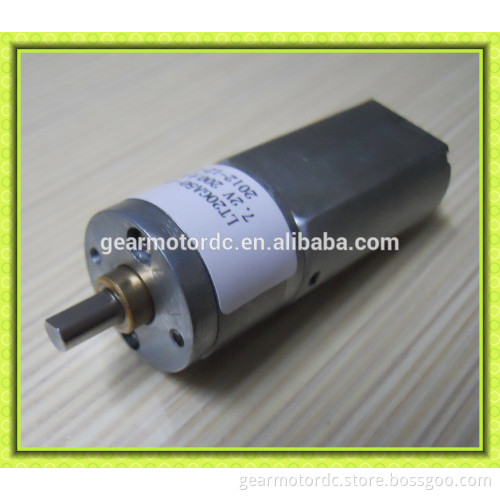

12v electrical vending machine with gearbox mini dc gear motor

  12v electrical vending machine with gearbox mini dc gear motor     Product dimension figure     Product technical parameters

Serial Number	0610	0613	0625	0631	0650	0662	0678	06100	06125	06156	06195	06250	06312	06390	06488
Gearbox L mm	16.2	16.2	16.2	16.2	17.5	17.5	17.5	19.2	19.2	19.2	19.2	20.5	20.5	20.5	20.5
No load speed rpm	600	480	240	322	120	97	77	60	48	38	31	24	19	15	12
Rated speed rpm	480	385	180	242	90	72	58	45	36	28	23	18	14	10	8
rated torque kg.cm	0.1	0.14	0.26	0.33	0.47	0.59	0.74	0.95	1.06	1.32	1.65	1.92	2.4	2.7	3.4
Max Torque kg.cm	3	3	3	3	3	3	3	3	5	5	5	7	7	7	7

  Company view Wicta gear motor    We Wicta Motor can make dc motor, dc gear motor, gear motor include: 12v dc gear motor,24 volt dc gear motor, we use high speed dc motor equipped with high reduction ratio to get low rpm and high torque, these products are widely used in automation industries. At the same time, we also supply, brushless motor, planetary gear motor, ac synchronous motor, etc. we have over 100 series and thousands of dc motors and gear motors for your choice.     Producing and assembling for dc motor   CE & RoHs Certification for dc motors     Gear motors Packaging & Shipping     FAQ   Q: You are a agent or have your own factory?   A: Yes we have factory. welcome to visit.       Q: If your dc motor/gear mtor can be customized?   A: YES. such as the output shaft,output speed,torque,shape related spares etc.special requirements can be customized as your design.       Q: Before I place sample order, what should I offer?   A: Your requirements of Voltage, Rated speed and Rated torque, setup dimension limitation etc. these are basic inforamtion.       Q: What's payment terms you can accept?   A: Paypal, T/T. small order 100%,larger order deposit 50%, banlance paid before the shipment.       Q:Do you have any stock motors?   A:NO, as all our motors are made according to costomers' requirements       Q: What is shipping method?   A: For samples, generally we use the express, like the DHL, FedEx, UPS. We also can get a favorable discount from our forwarder. For big cargos, it is ok to ship via sea or air, generally we accept FOB, CIF...   WELCOM TO OUR WEB:https://gearmotordc.en.alibaba.com
