mini dc motor gearbox 12v
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Reduction ratio | 11 | 22 | 33 | 50 | 83 | 100 | 150 | 200 | 300 | 450 | 600 |
Gearbox L mm | 11 | 11 | 12.5 | 12.5 | 14.2 | 14.2 | 14.2 | 15.6 | 15.6 | 15.6 | 17.0 |
No load speed rpm | 1090 | 545 | 363 | 240 | 145 | 120 | 80 | 60 | 40 | 27 | 20 |
Rated speed rpm | 872 | 436 | 272 | 180 | 108 | 90 | 60 | 45 | 30 | 20 | 15 |
rated torque kg.cm | 0.1 | 0.2 | 0.3 | 0.42 | 0.69 | 0.75 | 1.12 | 1.49 | 2.24 | 3.05 | 3.31 |
Max Torque kg.cm | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 7 | 7 |

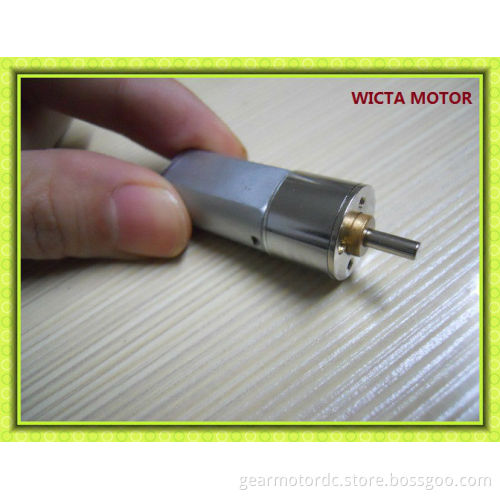

mini dc motor gearbox reference picture
-
