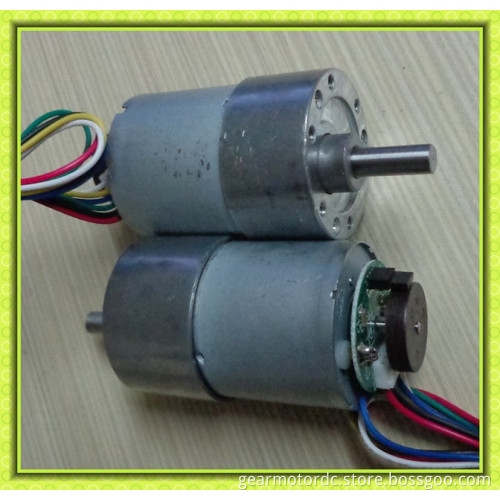

12v 24v dc gearmotor with encoder
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Drawing
SG37RS35ZY30 data Reduction ratio | 6 | 10 | 20 | 30 | 60 | 90 | 120 | 180 | 270 | 489 | 540 |
Gearbox L mm | 23.5 | 23.5 | 23.5 | 23.5 | 26 | 26 | 28 | 28 | 28 | 30 | 30 |
No load speed rpm | 750 | 450 | 225 | 150 | 75 | 50 | 37 | 25 | 17 | 9 | 8 |
Rated speed rpm | 562 | 337 | 169 | 112 | 56 | 38 | 28 | 19 | 12 | 6 | 5 |
rated torque kg.cm | 0.96 | 1.6 | 3.2 | 4.8 | 8.58 | 12.8 | 17.2 | 20 | 20 | 20 | 20 |
Max Torque kg.cm | 8 | 8 | 8 | 8 | 20 | 20 | 30 | 30 | 30 | 30 | 30 |
