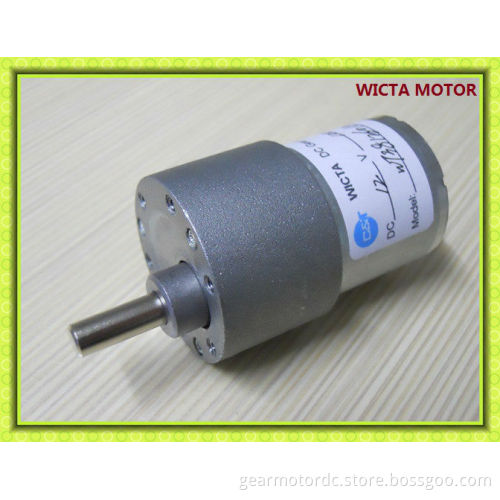

12v 24v brushless dc motor low rpm
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
BL3736251240 series
Model | 4006 | 4010 | 4020 | 4030 | 4060 | 4090 | 40120 | 40180 | 40270 | 40360 | 40540 | 40810 | 401620 | 402430 |
Gearbox L mm | 22.5 | 22.5 | 22.5 | 22.5 | 25 | 25 | 27 | 27 | 27 | 29 | 29 | 29 | 29 | 29 |
No load speed rpm | 666 | 400 | 200 | 133 | 67 | 44 | 33 | 22 | 15 | 11 | 7.5 | 5 | 2.5 | 1.5 |
Rated speed rpm | 533 | 320 | 160 | 107 | 50 | 33 | 25 | 17 | 11 | 8 | 5.5 | 4 | 2 | 1 |
rated torque kg.cm | 0.48 | 0.8 | 1.6 | 2.4 | 4.38 | 6.6 | 7.8 | 11.7 | 15.9 | 19.1 | 28.6 | 30* | 30* | 30* |
Max Torque kg.cm | 4 | 4 | 8 | 8 | 10 | 10 | 30 | 30 | 30 | 50 | 50 | 50 | 50 | 50 |
