24v 12v bldc gear motor
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
| DC Mort Type | Rated | No-load | No-load | Rated | Rated | Output | Biggest |
| voltage VDC | speed r/min | current | speed | torque | power | torque | |
| mA | r/min | mN.m | W | mN.m | |||
| 36ZWN42-2430 | 24 | 3000 | 270 | 2100 | 32 | 7 | 96 |
| 36ZWN42-2440 | 24 | 4000 | 300 | 2800 | 36 | 10 | 110 |
| ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 |
| gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| L mm | 31 | 31 | 38.5 | 38.5 | 38.5 | 48.2 | 48.2 | 48.2 | 48.2 | 55.4 | 55.4 |
| No-load speed | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 16 | 11 |
| Rated speed | 566 | 405 | 150 | 111 | 78 | 41 | 30 | 23 | 18 | 13 | 9 |
| torque N.m | 0.09 | 0.13 | 0.31 | 0.42 | 0.59 | 1 | 1.4 | 2 | 2.5 | 3.3 | 0.09 |
| Max.torque | 1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9.9 | 1 |

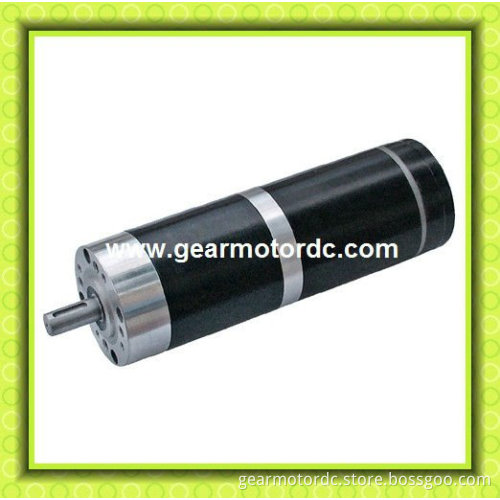

Reference Pictures:
