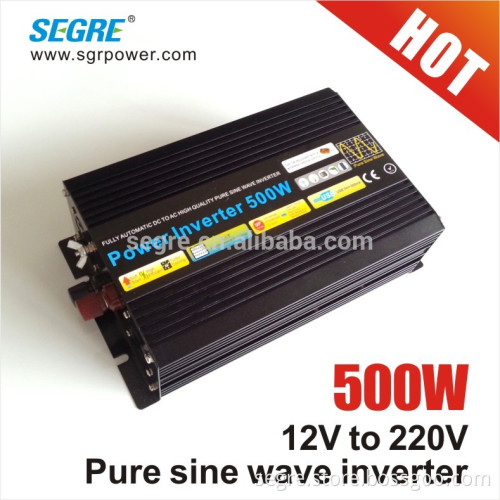

pure sine wave 500w inverter 12v 220v solar converter

Specifications inverter 12v 220v solar

Full power 500w super load capacity

Original imported IC THD<3%

External fuse

  pure sine wave 500w inverter 12v 220v solar converter Product Description   The inverter 12v 220v solar is a kind of conversion device which can convert 12v dc voltage to 220v acvoltage. It can support for 500w power range of 220v voltage electrical appliances,widely used in Computers, medical instruments, cash registers, TVs, DVD players, audio equipment, fax machines, limousines, buses, RVs, air-pumps, various types of light duty motors, etc.   Hot Sale Points 1. Full power 500w  Pure sine wave output, super load capacity
2. High surge capacity for starting demanding loads
3. Stable output voltage and frequency
4. Low no-load current draw
5. Digital microprocessor design
6. Original imported  Materials
7. Alloy Aluminum shell, Intelligent disperses heat system
8. external Fuse
9. Advanced STM technology
10. High-frequency technology, small volume
11. Different Socket and OEM socket are available
12. Short circuit alarm and protection
13. Overload alarm and protection
14. Reverse polarity protection
15. Intelligent over temperature alarm and shutdown
16. High voltage alarm and shutdown
17. low voltage alarm and shutdown
18. inverter 12v 220v solar
Product protection function nouns explain
•Overheating protection: If the inverter internal temperature or ambient temperature is too high, and inverter Automatic temperature protection to stop the output, to ensure the safety of electrical equipment.
•Low-voltage protection: When the battery or power supply voltage is too low, the inverter will automatically shutdown protection to stop output to protect the battery or power supply is not compromised.  •Over-voltage protection: When the DC input voltage exceeds the normal range, the inverter will stop automatically shut down to protect the output, note that the voltage is too high may damage the machine. •Overload Protection: When the connected equipment exceeds the inverter rated power Watt,the inverter will automatically shut down to stop output.
•Output short-circuit protection: when external electrical equipment short-circuit with the device itself, the inverter will automatically be turned off to stop the output.
• Reverse polarity protection: when dc input reversely, the fuse blows to protect inverter,the inverter could work after you replace the external fuse  Product Specification

Model	SGR-NC5011	SGR-NC5012	SGR-NC5021	SGR-NC5022	SGR-NC5031	SGR-NC5032	SGR-NC5041	SGR-NC5042
Continuous output	500W
Surge Power	1000W
input Voltage	12V	12V	24V	24V	36V	36V	48V	48V
DC Current (typ.)	60A		30A		20A		15A
AC Voltage	110V	220V	110V	220V	110V	220V	110V	220V
Regulation	Vrms ±3%
Frequency	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz
Wave Form	Pure Sine Wave
Total Harmonic Distortion	THD < 3%
USB Output	DC 5V ± 5% 500mA
Low Battery Alarm	10.5V ± 2%		21V ± 2%		31.5V ± 2%		42V ± 2%
Battery Voltage Selected	10V±2%		20V± 2%		30V±2%		40V ±2%
High Battery	16V ± 2%		32V ± 2%		48V ± 2%		64V ± 2%
No load current	650mA		350mA		220mA		170mA
Efficiency	87%
Short-circuit	Yes
Overload	Yes
Reverse polarity protection	Yes
Intelligent Design Heat Auto Control	Fan Start : 42°C ± 3 ,  Fan Stop : 38°C± 3
	High Temperature Shut Down : 70°C±3   ,   Restart Output : 55°C±3
Dimensions (mm)	225+25 (D) x 157 (W) x 75 (H)
Weight	2.4 kg

If your demond is out of our specification,please contact us for OEM design Output type:   Product detail photoes   Packaging & Shipping inverter 12v 220v solar packaging: 8pcs/carton box carton size: 52.5*35*42.5cm G.W: 19.5KGS/carton  Shipping: inverter 12v 220v solar
we usually ship sample with DHL Express For big order;we advice to ship it by sea to save your cost
  Our Services we offer power inverter from 75w to 3000w for home and car use,also we produce kinds of power adapters for laptop with our enigneer team,we accept OEM/ODM service,welcome to contact us if you need any help! Sample laptop charger could be send to you inverter 12v 220v solar   Company Information Located in Shenzhen, Shenzhen Segre Electronics Co., Ltd. specializes in the development, manufacture, marketing and after-sales service of inverters and power adapters.

Segre Electronics Co., Ltd. has an excellent design team and a highly efficient management team. We have strict internal management systems and highly talented technicians who have rich working experience in inverter and power adapter. In addition, we have set up several departments, including R&D, production, sales and service departments. We always insist on the spirit of "Meet the requirements, on time delivery, continuous innovation, customer satisfaction". Thus, our corporation has won trust and compliments from customers. We are looking forward to good cooperation with partners at home and abroad and to creating a glorious future.
  FAQ work time: inverter 12v 220v solar Monday to Saturday: 9:00-18:00 please leave us message if you need any help beyond our work time
