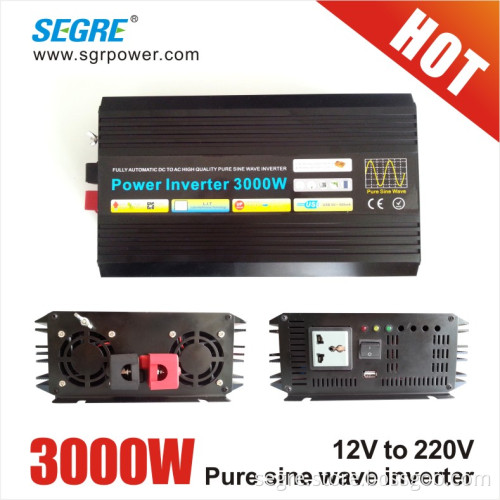

pure sine wave inverter 3000W dc to ac pure sine wave inverter

Specifications dc to ac pure sine wave inverter

Full power 3000w super load capacity

Original imported IC THD<3%

High-frequency technol

  dc to ac pure sine wave inverter   Product Description    Features of dc to ac pure sine wave inverter: Digital microprocessor design dc to ac pure sine wave inverter Dedicated design for the use of Solar Power Energy dc to ac pure sine wave inverter Pure Sine Wave Output dc to ac pure sine wave inverter Wireless Remote Control and Wired Remote Control (Optional) Supply USB 5V/500mA Short circuit alarm and protection Overload alarm and protection Reverse polarity protection  Intelligent over temperature alarm and shutdown High and low battery voltage alarm and shutdown Intelligent disperses heat system High surge capacity for starting demanding loads Stable output voltage and frequency Low no load current draw Advanced SMT technology

dc to ac pure sine wave inverter Scope of Application :

Medical Instruments, Emergency Power, Oxygen Concentrators, Cash Register, Home Theater, High-end Stereos, Notebook, Computers, Power Tools, Radios, DVD players, TV's , Musical Instruments, Recording Equipments, Limousines, Buses, RV's, Precision Equipment, Sensitive Radio Equipment, Laser Printers, Fax Machines, etc.USB 5V DC output is for Digital Camera, Cell Phone, Video Game, MP3, MP4, PDA.

dc to ac pure sine wave inverter SGR-NC3000 Specifications:



Model	SGR-NC30011	SGR-NC30012	SGR-NC30021	SGR-NC30022	SGR-NC30031	SGR-NC30032	SGR-NC30041	SGR-NC30042
Continuous output	3000W
Surge Power	6000W
input Voltage	12V	12V	24V	24V	36V	36V	48V	48V
AC Voltage	110V	220V	110V	220V	110V	220V	110V	220V
Regulation	Vrms ±3%
Frequency	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz
Wave Form	Pure Sine Wave
Total Harmonic Distortion	THD < 3%
USB Output	DC 5V ± 5% 500mA
Low Battery Alarm	10.5V ± 2%		21V ± 2%		31.5V ± 2%		42V ± 2%
Battery Voltage Selected	10V±2%		20V± 2%		30V±2%		40V ±2%
High Battery	16V ± 2%		32V ± 2%		48V ± 2%		64V ± 2%
No load current	2100mA		1050mA		700mA		550mA
Efficiency	87%
Short-circuit	Yes
Overload	Yes
Reverse polarity protection	Yes
Intelligent Design Heat Auto Control	Fan Start : 42°C ± 3 , Fan Stop : 38°C± 3
	High Temperature Shut Down : 70°C±3 , Restart Output : 55°C±3
Dimensions (mm)	370+33 (D) x 217 (W) x 88(H)
Weight	6.6kg

  If your demond is out of our specification, please contact us for OEM design Product of dc to ac pure sine wave inverter protection function nouns explain
•Overheating protection: If the dc to ac pure sine wave inverter internal temperature or ambient temperature is too high, and solar inverter power inverter Automatic temperature protection to stop the output, to ensure the safety of electrical equipment. •Low-voltage protection: When the battery or power supply voltage is too low, the dc to ac pure sine wave inverter will automatically shutdown protection to stop output to protect the battery or power supply is not compromised. •Over-voltage protection: When the DC input voltage exceeds the normal range, the  dc to ac pure sine wave inverter will stop automatically shut down to protect the output, note that the voltage is too high may damage the machine. •Overload Protection: When the connected equipment exceeds the inverter rated power Watt,the  dc to ac pure sine wave inverter will automatically shut down to stop output. •Output short-circuit protection: when external electrical equipment short-circuit with the device itself, the dc to ac pure sine wave inverter will automatically be turned off to stop the output. • Reverse polarity protection: when dc input reversely, the fuse blows to protect  dc to ac pure sine wave inverter ,the inverter could work after you replace the external fuse If your demond is out of our specification,please contact us for OEM design output type Wired Remote Control Wireless Remote Control of dc to ac pure sine wave inverter :can be chosen Product of dc to ac pure sine wave inverter detail photoes     Our Services we offer power inverter from 75w to 3000w for home and car use,like  the dc to ac pure sine wave inverter.also we produce kinds of power adapters for laptop with our enigneer team,we accept OEM/ODM service,welcome to contact us if you need any help!       Company Information Located in Shenzhen, Shenzhen Segre Electronics Co., Ltd. specializes in the development, manufacture, marketing and after-sales service of inverters and power adapters. We has an excellent design team and a highly efficient management team. We have strict internal management systems and highly talented technicians who have rich working experience in inverter and power adapter. In addition, we have set up several departments, including R&D, production, sales and service departments. We always insist on the spirit of "Meet the requirements, on time delivery, continuous innovation, customer satisfaction". Thus, our corporation has won trust and compliments from customers. We are looking forward to good cooperation with partners at home and abroad and to creating a glorious future.     FAQ work time: Monday to Saturday: 9:00-18:00 Welcome to leave us messages if you need help.And welcome to visit our factory to discuss your detail request!
