Automatic model aircraft data collect system bluetooth converter GPS data

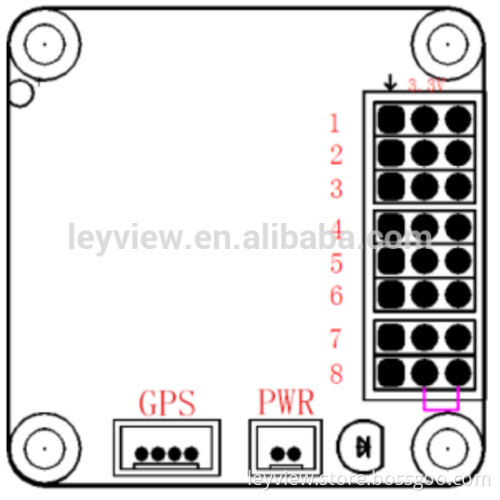

Product Description   Product name: Model aircraft data collect module      Introduction          The model aircraft data collector unit can be used in various kinds of models to collect the internal working parameters of the model,such as battery voltage,battery temperature,electrical temperature,motor temperature ,GPS data.  Each parameter collection circuit and GPS location communication interface are simply plug in power supply that are not depend on remote control and receiver of model aircraft. There is no interference with remote control during operation.          The model aircraft bluetooth converter is connected to phone bluetooth and data is transmitted to the phone,then data viewing and recording via smart phone.     Technical parameters         Working temperature:-20-60℃       Power supply voltage:data collector :DC5V-10V,                                         bluetooth converter: 3AA battery(1.2V Nimh battery or 1.5V carbon battery.                   Input:temperature,voltage, GPS signal     Output:2.4G wireless signal, blue tooth     Static power : less than 1 w     Dimension: data collector: 40mm* 40mm* 14mm(± 1mm)                       Bluetooth converter: 174mm* 69mm* 24mm(± 1mm)    GPS positioning time:Empty Spaces about 90s     Working current of data collector:about 63mA     Working current of Bluetooth converter:about 45mA   Main feature 1.The data collector is independent of the remote control and receiver. To view the data and save the record according to installing the software via smart phone.   2. The data collector is with GPS location communication interface which is communication with standard NMEA output GPS to be location.The speed of serial port communication is 38400bps.   Data collector specification   Bluetooth converter specification     Matching code operation         The red two terminals that is No8 interface are short circuit with assorted wires of data collector according to the pic.and connected to power supply.Press code key of bluetooth converter ,connect to power supply, When the bluetooth converter wireless indicator lights up,the data collector and bluetooth converter are matched successfully. Then recharging with bluetooth converter and data collector.When the bluetooth converter wireless indicator lights up, the wireless connection between the two is normal.   How to use   1.The data collector and blue tooth converter are connected to the power supply.   2.Open the suite of software and click on the appropriate type of model aircraft.      3.  Enter the main interface, click the upper left corner of the blue tooth logo, then pop-up                    bluetooth Search box, click Search for equipment Search,then click on the corresponding device name for automatic connection.(The name of Bluetooth converter is BLExxxxxx).        The bluetooth icon is changed from gray to blue once connected to Bluetooth normally.The power battery voltage, temperature and speed of the collector can be viewed at this time.       4.  The GPS signal below the bluetooth sign is changed from gray to blue that is normally, then click “start record”,the software starts recording the various measurements and GPS location information.     Remarks  1.  Make sure that the data collector and bluetooth converter have been matched code. Usually the matched data collector and Bluetooth have been matched code. Need to match code once Bluetooth converter or data collector replaced.   2. It is normal that GPS location modules can't be located for a long time where is not empty space,thick clouds or heavy rain weather.     Packaging & Shipping    Package :       Standard export carton package  Company Information   We are professional to undertake various tapes designs ,micro-controller development, circuit design and post production testing integration services of intelligent electronic products, mechanical and electrical control products. As long as you put forward to the functional requirement of the product we can according to your request to realize the function what you want.               Established in 2005, we are professional maufacturer and trader specialized in the research, development and production of intelligent clean robot. With innovation spirit, we expand form original base: intelligent system controlling company to industry of mechanical and electrical integration. We have strong R&D team and strong company strength. We are located in Baoan district, Shenzhen City,China. We adheres to "convenient, efficient, intelligent" which guarentees products quality and customer service. Intelligent integrated into life, make life more convenient.
