4.5M larthest distance measurement ultrasonic detection of obstacles module for positioning of obstacles avoidance robot

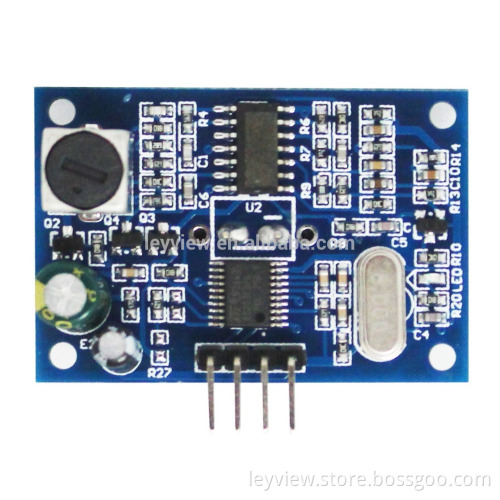

Product Description         Ultrasonic distance measurement module   Adopt the industrial integrated ultrasonic probe design, waterproof type and stable  performance of the module.Batch application in vacuum cleaner robot, balancing car,  medical robot, security robot, ultrasonic distance measurement, positioning of obstacles avoidance,ultrasonic recharge products.         1.  Specifications

parameters	QHMK-002
Working voltage	DC-5V
Static working current	5mA
Total working current	30mA
Acoustic emission frequency	40KHz
Farthest distance measurement	4.5M
Dead zone	25cm
Way of wire collection	+5v
	Trig RX
	Echo TX
	GND
Module dimension	41*28.5mm
Resolution	About 0.5cm
Angel	Less than 50 angel
Working temperature	-10-70℃
Storage temperature	-20-80℃

           2. Functions     (1)The module is stable performance,accurate distance measurement. It can be the same fast as the                     SRF05 and SRF02 module.   (2)Small volume ,easy to use.   (3) Low voltage, low power consumption   (4) High precision measurement   (5) Strong anti-interference   (6) The integrated enclosed waterproof with line is suitable for damp and bad measurement environment.   3.Basic working principle    (1)Use IO port TRIG to distance measurement .High level signal more  than 10us   (2)The module automatically sends a square wave of 8 number 40khz to detect if there is a signal to                       return automatically.   (3)If there is a signal to return, input a high level via IO port ECHO.The duration of the high level is the amount of time that the ultrasound go from launch to return(test distance=time of high level *speed of sound340m/s)/2   4.Operation method    The control port sends a  above 10us TTL and then waits for TTL output at the receiving port.set the timer once has output.The timer can be read when the receiving port becomes 0 that is time of distance measurement. Then can work out distance of measurement. With this cycle test constantly, you can achieve the value of your movable distance measurements.    5.Ultrasonic distance measurement  sequence diagram                     Packaging & Shipping   Package :       Standard export carton package Company Information               We are professional to undertake various tapes designs ,micro-controller development, circuit design and post production testing integration services of intelligent electronic products, mechanical and electrical control products. As long as you put forward to the functional requirement of the product we can according to your request to realize the function what you want.               Established in 2005, we are professional maufacturer and trader specialized in the research, development and production of intelligent clean robot. With innovation spirit, we expand form original base: intelligent system controlling company to industry of mechanical and electrical integration. We have strong R&D team and strong company strength. We are located in Baoan district, Shenzhen City,China. We adheres to "convenient, efficient, intelligent" which guarentees products quality and customer service. Intelligent integrated into life, make life more convenient.
