Remote Control Type and DC12V 2A Voltage Dali Touch Controller

Product Description Product name: Remote Control Type and DC12V 2A Voltage Dali  Touch Controller  Model No.: LYD204 Technical Parameters

Power supply	DALI bus
input signal	touch panel
output signal	standard DALI signal
working temperature	-20-60digree
input current	less than 6mA
gross weight	195.6g
net weight	139.5g
packing size	L80*W100*H75mm

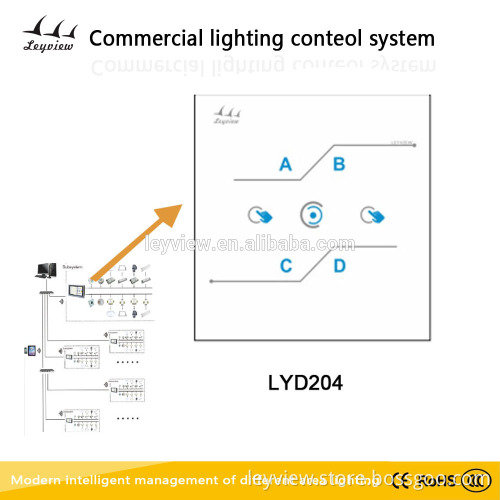

    Dimensions Interface Instructions   Key instruction   1.Picture 3 is the panel picture,A,B,C,D all can be respectively set to scene,grouping and device function. 2.Picture 4 shows the function of buttons

General settings

Button	Default vatues
	Scene 1(programmable)
	Scene 1(programmable)
	Scene 1(programmable)
	Scene 1(programmable)
	Dim darker
	Switch on;dim brighter
	Switch off

    Instructions   DALI touch panel support the user defined keys,and can set it to pointed scene, grouping and devices.Please refer to the following< collocation method> When the first using, A, B, C,D, the default of these four keys function must be set to scene 0, 1, 2, 3.   Scene control: When a user configured keys to scene function, touch the corresponding key, and all touch panel equipment on the same bus will be executed scene 0, the left and right key are not available at this time ( the left and right key can only be used for grouping and dimming of the equipment), press the close button to close the brightness.   Grouping control: When a user configured the button in  grouping functions, touch button can select the set grouping, the chosen session which is selectied can closed brightness output at this time, and then touch the left and right key to dimmer the chosen grouping.Touch the off button to shut down the output equipment.   Device control: When a user configured the button into equipment function, touch keys can light all device set, and then touch left and right key to dimmer the device chosen, touch the off button to shut down the output equipment.   Company Information     https://www.leyview.com/en/   Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand.  We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.  Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.       Our Services   Verified Information   This information was Verified by SGS Group and is valid for the following period: 2016/01/28 --- 2017/01/27 The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >> The competitive advantage of product line: The company established in 2014, located in Shiyan Town of Shenzhen City, they have obtained CE Certificates, and have two assembly lines.     FAQ   Question 1: Are you a factory or a trading company? Answer: We are a factory. Question 2:  What's the main business of Leyview? Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions. Question 3: What' s the main products of Leyview? Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI). Question 4:  What Leyview will do if we have problems after receiving your products? Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we  will do our best to solve any of your problems with our good after-sale service. Question 5: How about your sales model? Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels.     Tel: 0086-755-29686602
